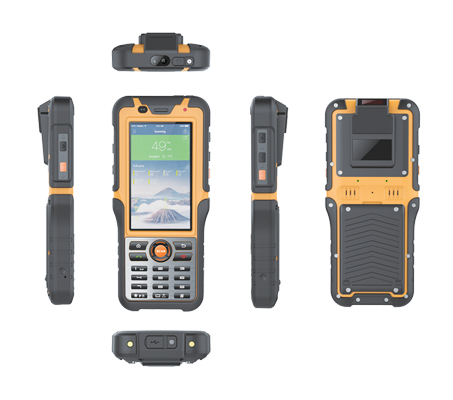

Ordinateur de poche robuste SXPad 1300


Voir la soumission

On est là pour vous aider!

SXPad 1300 intelligent terminal is ideal for highly mobile outdoor and field workers in markets like logistics,construction,mine, military,filed sales and the public sector.

It meets MIL-STD-810G and IP67 standards for durability and protection against dirt, dust,water,motion, vibration, temperature and other factors that would quickly damage an industrial-grade tablet. It can withstand up to a 1.8m drop and 2 ton shock pressure test. It also comes with a suite of integrated sensor such as direction, gravity, compass, rotation and gyroscope. Also, it goes with a long-life 5000mAh battery sunlight-readable screen, and operating under extreme low temperature.

<
Processor1.5GHzx4 Cortex A53 Quad Core 64bit
GSM 850/900/1800/1900 WCDMA
850/2100,1GB+16GB,8.0MP
with OTG,GPS,WI-FI,BT
Main Display4.5"QHD IPS/AFFSLCD
960*540 Sunlight Readable
Touch Panel
G+G5 5 Points capacitance screen
AccessoriesUSB cable*1,charger*1,user
manual*1,gift box*1
Touch PanelG+G5 5 Points capacitance screen
Dimensions197x92x26.5 mm (LxWxH)
Weight380g
Hardware
ChipsetCortex A53 Quad Core 1.5G Hzx4
Frequency(MHZ)WCDMA 850/2100(850/1900 option)&GSM850/900/1800/1900
Sim cardYes
OSAndroid 5.1
GPSSatellite Navigation GPS chip built-in,support A-GPS,EPO
OTG/FM Radio/Motion sensor/Gravity SensorSupport
Magnetic Field Senso/Gyroscope SensorSupport
BluetoothSupport
NFCOptional
SpeakerSingle 2030
Camera
Main Camera8.00MP(AF)with flash led
Barcode Scanner1D/2D Barcode Scanne
Memory
Internal Memory3GB RAM +32GB ROM
External MemoryMicro SD card (T-FLASH card),max 64GB
Batteries & IO
Capacity(mAh)5000mAh
Earphone3.5mm
ChargerUSB Micro 5Pin
ConnectorUSB Micro 5Pin
Network
3GWCDMA 3.75G(HSDPA+42.2Mbps,
HSUPA+11.5Mbps) TD-SCDMA
4Gfdd: UP TO 150Mpds, 50 Mbps uplink, tdd: up to 150 Mbps downlink, 50 Mbps uplink
EDGESupport
WAPSupport
GPRSSupport
WI-FISupport
Others
Data collectionUHF RFID (1-3m)
GNSS Barcode scanner
HF RFID/NFC
CertificationCE/Rohs/FCC
Serial portRS232/TTL 3.3Vx3/GPIO
3.3Vx3/200ma VBTX2
Internal space32mmx32mmx5mmx1
Environmental test
  • Shakeproof:1-19Hz/1.0mm; 19-200Hz/1.0g
  • Drop-proof:MIL-STD-810G/Method
  • 516.6/Procedure IV
  • Water-proof:Class 7
  • Dust-proof:Class 6
  • Soundness:MTBF>50000h;MTTR<0.5h
  • Operating temperature:(-20℃to60℃)
  • Non-operating temperature:(-40℃-80℃)
  • Relative humidity:5% to 95% non condensing
  • Maximum operating altitude:15,000 feet (4500 m)
CE/Rohs/FCC
