    Asphalt Testing AccessoriesAsphalt Testing Accessories

Asphalt Testing Accessories

AASHTO T245, ASTM D1559, ASTM D5581, ASTM D6927, ASTM D6931, BS 598:107, CNR 30, EN 12697-43


View Quote

Fast response from our specialists

Why buy from Geneq? - find out more


Do you have a question?

Accessory sets for testing asphalt samples with Automatic Multipurpose Testers. Suitable for all Automatic Multipurpose Testers models if not otherwise specified.

Models

34-V0107/MAR
Test set to perform the Marshall test in digital mode, including: 82-P0375 Load cell 50 kN capacity 82-P0375/C Adapter to fit load cell (two pieces) 82-P0322 Displacement transducer, 25 mm travel 34-T0104/81 Adjustable transducer holder 34-T0104/13 Compression device extension 34-T0104/10 Compression device 76-B0033/4 Stability mould for 4″ (101.6 mm) diameter specimens

34-V0107/CM
Test set to perform the CBR/LBR and Marshall test in digital mode, including: 82-P0375 Load cell 50 kN capacity 82-P0375/C Adapter to fit load cell (two pieces) 82-P0322 Displacement transducer, 25 mm travel 34-T0104/81 Adjustable transducer holder 34-T0103/1 Adjustable CBR/LBR penetration piston 34-T0104/13 Compression device extension 34-T0104/10 Compression device 76-B0033/4 Stability mould for 4″ (101.6 mm) diameter specimens.

Specifications

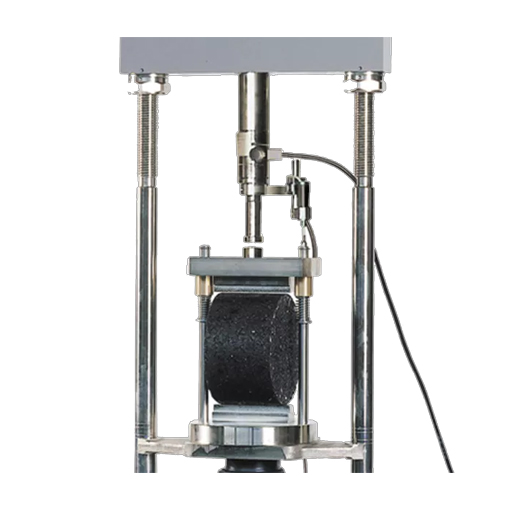

Marshall to EN 12697-34, ASTM D1559, ASTM D6927
34-V0107/MAR

Test set to perform the Marshall test in the digital mode, including:

  • 82-P0375, Load cell 50 kN capacity
  • 82-P0375/C, Adapter to fit load cell (two pieces)
  • 82-P0322, Displacement transducer, 25 mm travel
  • 34-T0104/81, Adjustable transducer holder
  • 34-T0104/13, Compression device extension
  • 34-T0104/10, Compression device
  • 76-B0033/4, Stability mould for 4″ (101.6 mm) diameter specimens

CBR/LBR and Marshall (To avoid duplications)
34-V0107/CM

Test set to perform the Marshall test in the digital mode, including:

  • 82-P0375, Load cell 50 kN capacity
  • 82-P0375/C, Adapter to fit load cell (two pieces)
  • 82-P0322, Displacement transducer, 25 mm travel
  • 34-T0104/81, Adjustable transducer holder
  • 34-T0103/1, Adjustable CBR/LBR penetration piston
  • 34-T0104/13, Compression device extension
  • 34-T0104/10, Compression device
  • 76-B0033/4, Stability mould for 4″ (101.6 mm) diameter specimens

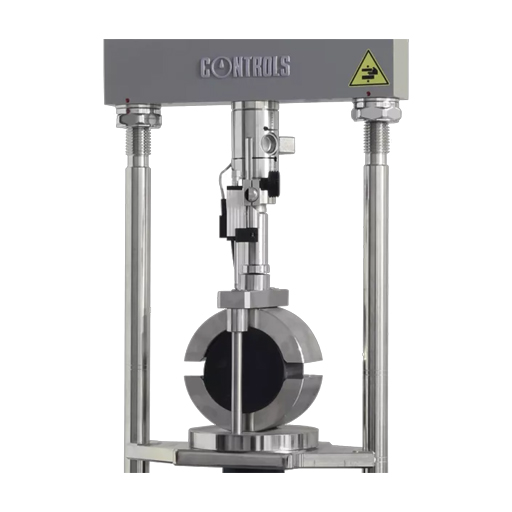

Indirect Tensile 4″ (6″) to EN 12697-23, ASTM D6931

  • 82-P0375, Load cell 50 kN capacity
  • 82-P0375/C, Adapter to fit load cell (two pieces)
  • 82-P0322, Displacement transducer, 25 mm travel
  • 34-T0104/81, Adjustable transducer holder
  • 34-T0104/13, Compression device extension (two pieces)
  • 34-T0104/10, Compression device
  • 76-B0078/F, Frame for tensile splitting device
  • 76-B0078/F1, Pair of loading strips for 100 mm dia. sample
  • 76-B0078/F2, Pair of loading strips for 150 mm dia. sample
  • 76-B0078/F3, Pair of loading strips for 160 mm dia. sample

Interlayer bonding / Shear bond test (Leutner test) to EN 12697-48

  • 82-P0375, Load cell 50 kN capacity
  • 82-P0375/C, Adapter to fit load cell (two pieces)
  • 82-P0322, Displacement transducer, 25 mm travel
  • 34-T0104/81, Adjustable transducer holder
  • 34-T0104/13, Compression device extension (two pieces)
  • 34-T0104/10, Compression device
  • 76-B0033/E, Shear bond test apparatus, 150mm
  • 76-B0078/F1, Pair of loading strips for 100 mm dia. sample
  • 76-B0033/E1, Adaptor to test 100mm dia. samples with shear bond test apparatus 76-B0033/E
