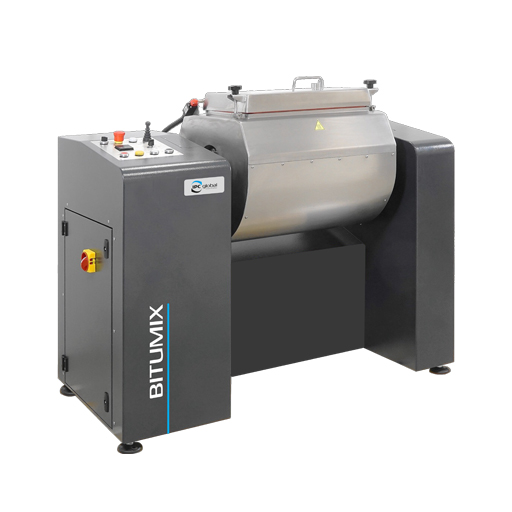

BITUMIX - Automatic Laboratory Mixer

The BITUMIX Automatic Laboratory Mixer, is a game-changer for the testing industry of bituminous mixtures. Designed to streamline and enhance the mixing process, this advanced device combines precision engineering with automated features, ensuring accurate and consistent asphalt mix batches.

Equipped with state-of-the-art technology, the Automatic Laboratory Mixer takes the laborious and time-consuming task of mixing bituminous samples off your hands. Its intelligent programming allows for efficient blending of materials, ensuring homogeneity and eliminating human error.

With its user-friendly interface and customizable settings, it allows technicians to effortlessly meet testing standards and achieve reliable outcomes.

The design and testing of bituminous mixtures includes various laboratory tests such as:

• Marshall stability (EN 12697-34)
• Gyratory compaction (EN 12697-31)
• Slabs laboratory compaction (EN 12697-33) to prepare specimens for Wheel tracking (EN 12697-22)
• Determination of stiffness including Beam fatigue testing (EN 12697-26, EN 13108).

How to prepare your bituminous mixture

To produce samples for performing the above tests, it is essential that the preparation of a bituminous mixture is carried out at a reference temperature and a limited time period in order to reduce the mechanical degradation of the aggregates. The mixer shall also be capable of entirely coating all mineral substances in not more than 5 minutes as stated by EN 12697-35.

The BITUMIX Automatic Laboratory Mixer can be used as part of your Superpave performance-based testing program

Features

• Conforms to EN 12697-35
• Ideal to prepare laboratory samples for mix design
• New improved mixing drum and heating system quickly adjustable up to 250° C
• Mixing capacity up 30 litres
• Mixing speed adjustable from 5 to 35 rpm
• Mixing temperature adjustable up to 250°C

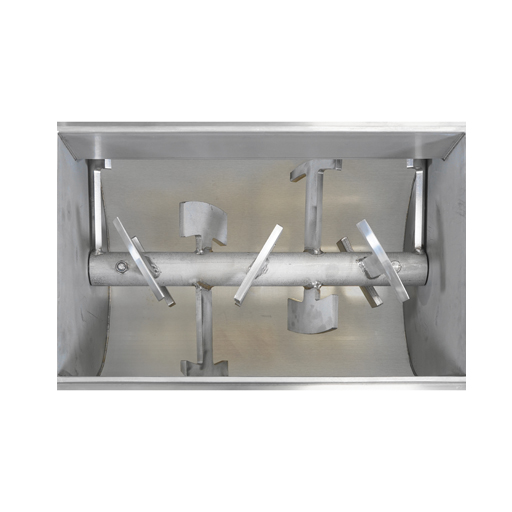

• Stainless steel (AISI 304) mixing container
• Temperature control by PT 100 probe

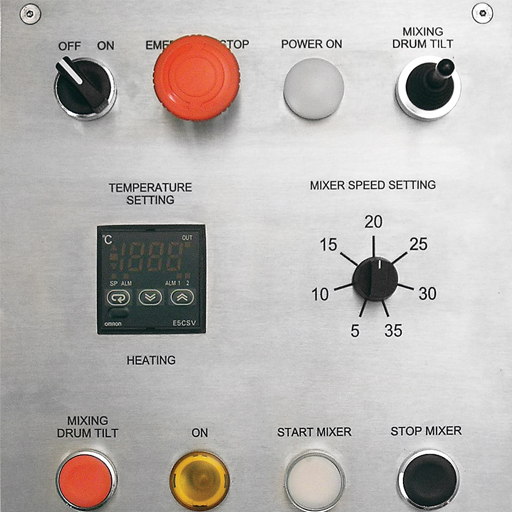

• Digital temperature display

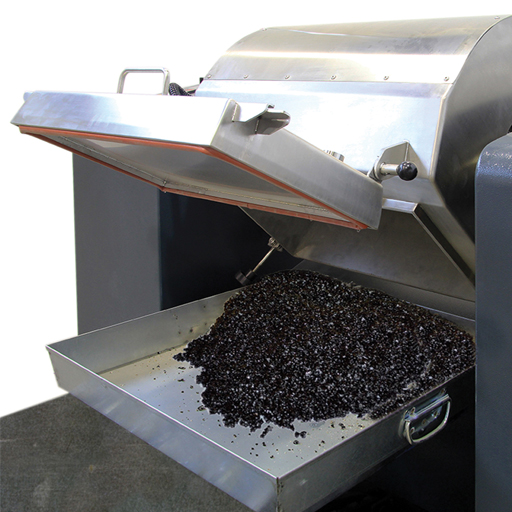

• Easy unloading by motorized tilting system of the container

Models

77-PV0077/CZ     BITUMIX - Automatic laboratory mixer 30 litres capacity. 220V/60Hz/3ph

77-PV0077/CRZ     BITUMIX - Automatic laboratory mixer 30 litres capacity. Complete with mixing tool with removableand adjustable blades. 220V/60Hz/3ph
