BMD Testing Accessories

AASHTO T393 / TP124 , ASTM D8044, ASTM D8225, ASTM D8360, EN 12697-44


View Quote

Fast response from our specialists

Why buy from Geneq? - find out more


Do you have a question?

The BMD Testing Accessories for performing Balanced Mix Design tests with Automatic Multipurpose Testers.

Compatible for use with the BalancedLoader testing system.

Specifications

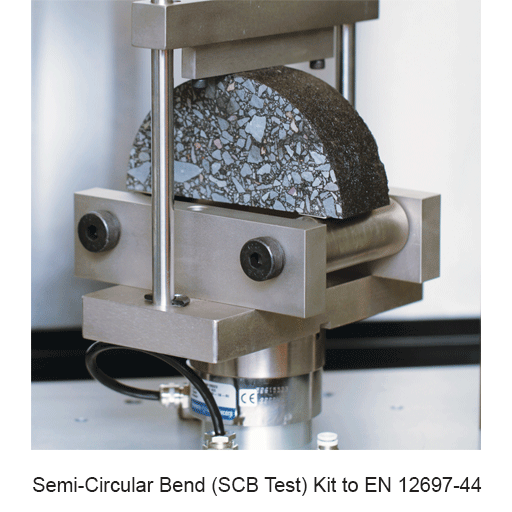

Semi-Circular Bend (SCB) to EN 12697-44

Test set to perform the SCB test in the digital mode, including:

  • 82-P0375   Load cell 50 kN capacity
  • 82-P0375/C   Adapter to fit load cell (two pieces)
  • 82-P0322   Displacement transducer, 25 mm travel
  • 34-T0104/81   Adjustable transducer holder
  • 34-T0104/13   Compression device extension
  • 34-T0104/10   Compression device
  • 79-PV70119   Indirect Tensile Jig Guided Platen Assembly (100mm& 150mm diameter)
  • 79-PV70130   Semi-Circular Bend Test Jig for EN12697-44

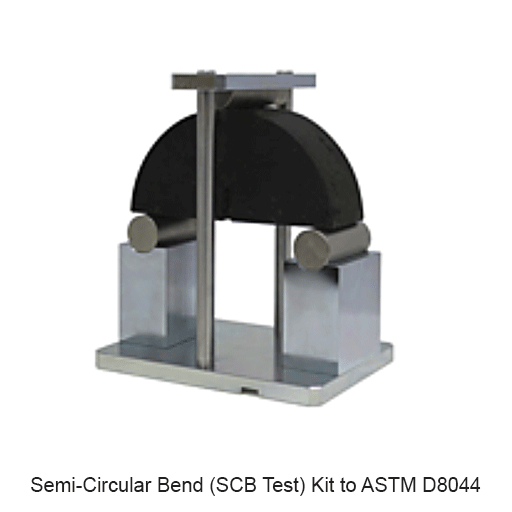

Semi-Circular Bend (SCB) to ASTM 8044, AASHTO T393/TP124 Method B

Test set to perform the SCB test, including:

  • 82-P0375   Load cell 50 kN capacity
  • 82-P0375/C   Adapter to fit load cell (two pieces)
  • 82-P0322   Displacement transducer, 25 mm travel
  • 34-T0104/81   Adjustable transducer holder
  • 34-T0103/1   Adjustable CBR penetration piston
  • 34-T0104/13   Compression device extension
  • 34-T0104/10   Compression device
  • 79-PV70150   Indirect Tensile (IDT) and Semi-Circular Bend (SCB) Jig Base
  • 79-PV70155   Semi-Circular Bend (SCB) Top Platen
  • 79-PV70156   Semi-Circular Bend (SCB) Jig Upgrade Kit Option for ASTM D8044 / AASHTO
  • T393/TP124   Method B

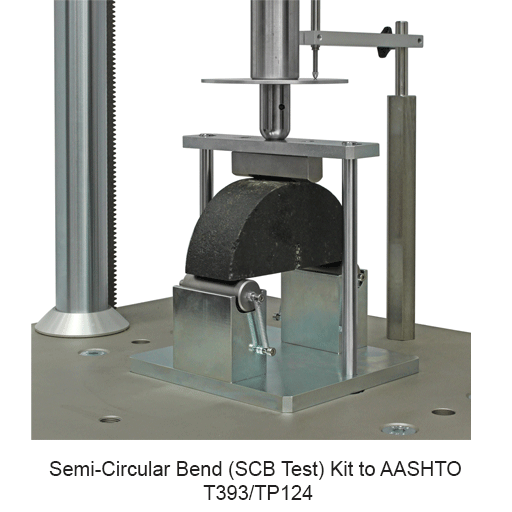

Semi-Circular Bend (SCB) to AASHTO T393/TP124 Method A

Test set to perform the SCB test, including:

  • 82-P0375   Load cell 50 kN capacity
  • 82-P0375/C   Adapter to fit load cell (two pieces)
  • 82-P0322   Displacement transducer, 25 mm travel
  • 34-T0104/81   Adjustable transducer holder
  • 34-T0103/1   Adjustable CBR penetration piston
  • 34-T0104/13   Compression device extension
  • 34-T0104/10   Compression device
  • 79-PV70150   Indirect Tensile (IDT) and Semi-Circular Bend (SCB) Jig Base
  • 79-PV70155   Semi-Circular Bend (SCB) Top Platen
  • 79-PV70157   Semi-Circular Bend (SCB) Jig Upgrade Kit Option for AASHTO T393/TP124 Method A

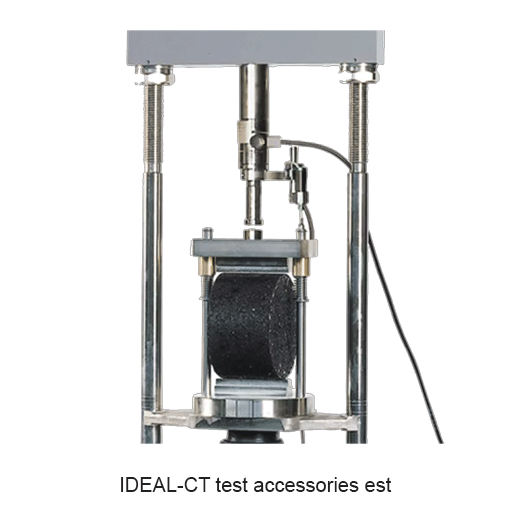

IDEAL-CT (Cracking Tolerance Index) to ASTM D8225

  • 82-P0375   Load cell 50 kN capacity
  • 82-P0375/C   Adapter to fit load cell (two pieces)
  • 82-P0322   Displacement transducer, 25 mm travel
  • 34-T0104/81   Adjustable transducer holder
  • 34-T0104/13   Compression device extension (two pieces)
  • 34-T0104/10   Compression device
  • 76-B0078/F   Frame for tensile splitting device
  • 76-B0078/F2   Pair of loading strips for 150 mm dia. sample

IDEAL-RT (Rutting Tolerance Index) to ASTM D8360

  • 82-P0375   Load cell 50 kN capacity
  • 82-P0375/C   Adapter to fit load cell (two pieces)
  • 82-P0322   Displacement transducer, 25 mm travel
  • 34-T0104/81   Adjustable transducer holder
  • 34-T0104/13   Compression device extension (two pieces)
  • 34-T0104/10   Compression device
  • 76-B0078/F   Frame for tensile splitting device
  • 76-B0078/RT   Accessory for IDEAL-RT test. To be mounted onto 76-B0078/F base
