New

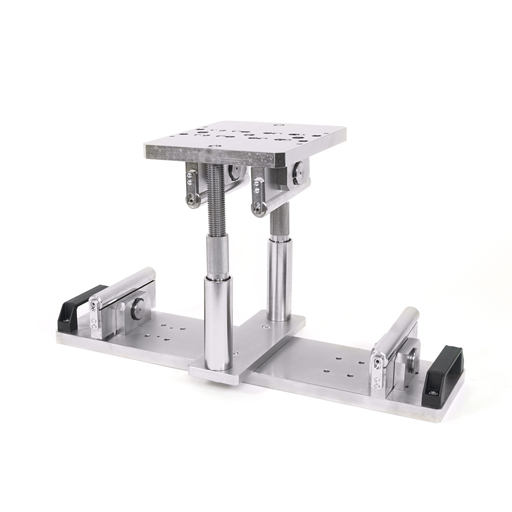

Flexural Test Device for Concrete Beams
- Controls - 50-C9010/C, 50-C9010/CA
AASHTO T97, ASTM C293, ASTM C78, EN 12390-5
A Flexural Test Device for Concrete Beams is a testing accessory for center and third point test on concrete beams.
Total height: 370 mm when adjusted for 150 mm beams and 320 mm for 100 mm beams.

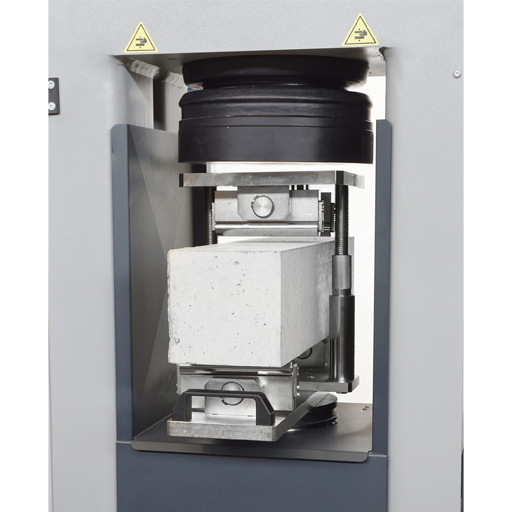

These devices can be easily placed on the compression tester by removing the bottom platen or by using suitable distance pieces to adjust the vertical daylight.
Specifications
| Max vertical daylight | 155 mm (total height:370mm) |
| Min vertical daylight | 110 mm (total height:320mm) |
| Max travel | 45 mm |
| Rollers | dia.25 mm x 160 mm |
| Distance between upper rollers | 100 mm or 150 mm |
| Distance between lower rollers | 300 mm or 450 mm |
| Weight approx. | 41 kg |
| Total width | 255 mm |
