Los Angeles Abrasion Machine
- Controls - COD0504-00
AASHTO T401, AASHTO T96, ASTM C131, ASTM C535, EN 1097-2, EN 12697-17, EN 12697-43
8,500.00 $ CAD
Los Angeles Abrasion Machine, 110V/60Hz/1Ph.

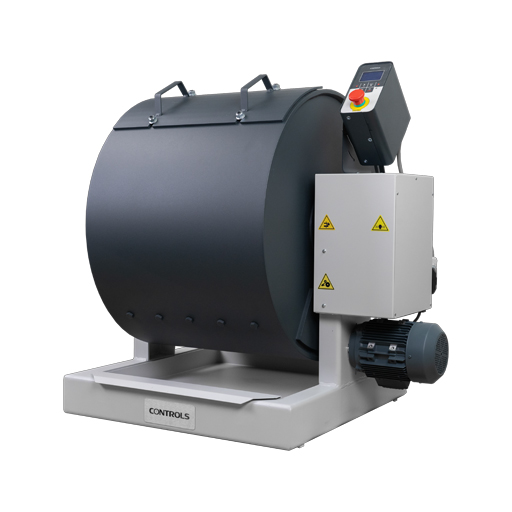

The Los Angeles test covers the procedure for testing coarse aggregates for resistance to abrasion. The Los Angeles Abrasion machine consists of a rolled steel drum with an inner diameter of 711 mm and an internal length of 508 mm.
The drum is rotated by a speed reducer driven by an electric motor at a speed of between 31 and 33 r.p.m.
Equipped with an automatic counter, the drum of the Los Angeles Abrasion machine can be preset to perform for either a set number of revolutions or or a pre-defined duration. The unit is supplied without the abrasive charge, which has to be ordered separately depending on the standard in use.
Features
- High stiffness welded steel frame

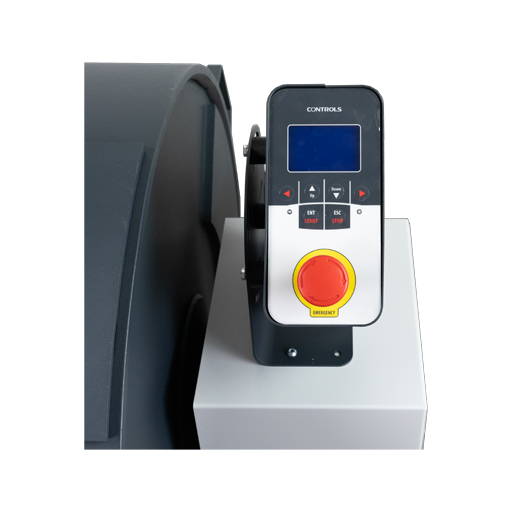

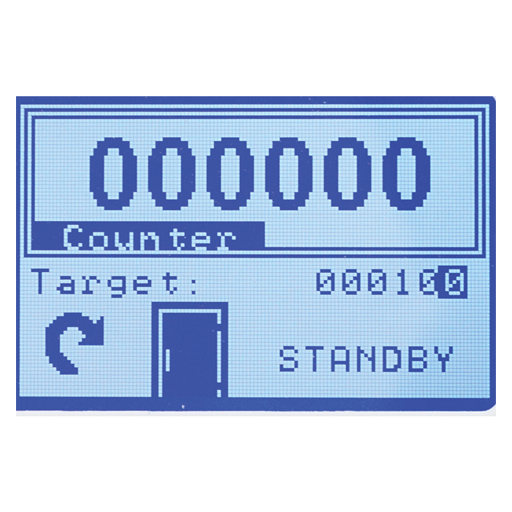

- High resolution graphical display 128 x 80 pixels
- 6 keys membrane keyboard
- 8 languages can be set: Italian, English, French, Spanish, Polish, Portuguese, Romanian and Cesky
- Double test procedure: ability to set the target revolutions / drops or the total working time
- Los Angeles Abrasion machine can be mounted inside a noise reduction and CE compliant safety cabinet with door opening switch.
Specifications
- Power: 740 W
- Dimensions approx.: 1005x820x950 mm
- Weight approx.: 350 kg
The machine is supplied without the safety cabinet.
Accessory

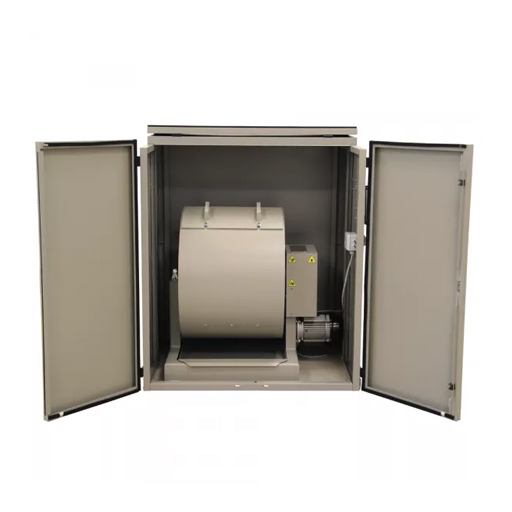

COD0500/CB SOUNDPROOF CABINET FOR LOS ANGELES ABRASION MACHINE.
