Universal Proctor/CBR Automatic Compactors

Universal Proctor/CBR Automatic Compactors

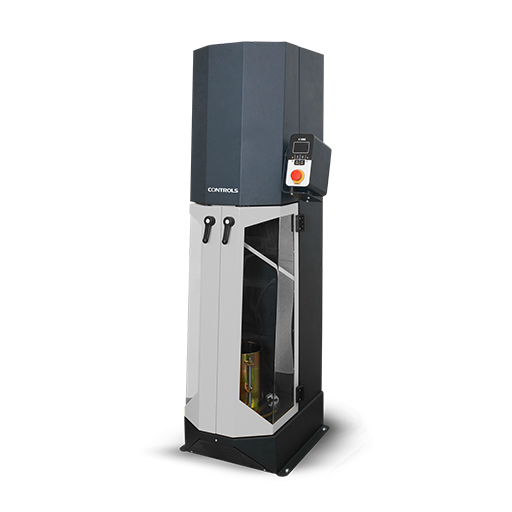

CONTROLS Proctor/CBR universal compactor automatically performs programmable and uniform compaction cycles in full conformance to all standards. Users can automatically set dropping height with high precision. This eliminates inconsistencies in test data generated by manual adjustments and guarantees accurate and reliable results every time.

Multi-standards

Universal and fully automatic universal compactor matching all Standards EN, ASTM, AASHTO, AS, BS, NF, AS, and others, including central stroke.

Superior accuracy

The Proctor/CBR universal compactor continuously measures and adjusts the dropping height at each stroke during compaction. Equipped with a robust kit rammer, high precision compaction is maintained throughout the whole compacting path.

Fully automatic and versatile

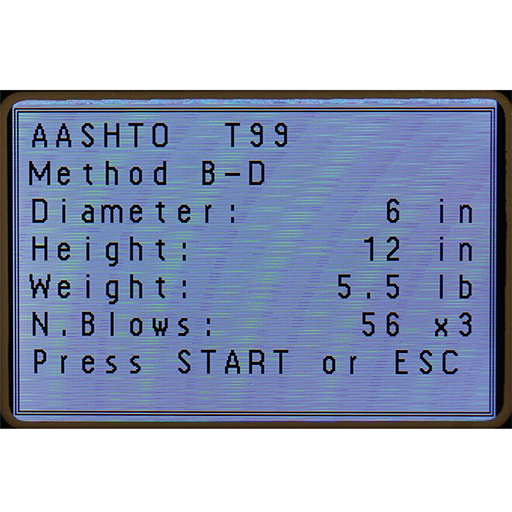

Dropping height is set from the digital display without the need for any manual adjustments. The mold fixing system uses a quick release clamping mechanism compatible with CONTROLS and most brands of CBR/Proctor molds*.

Optimal user interface

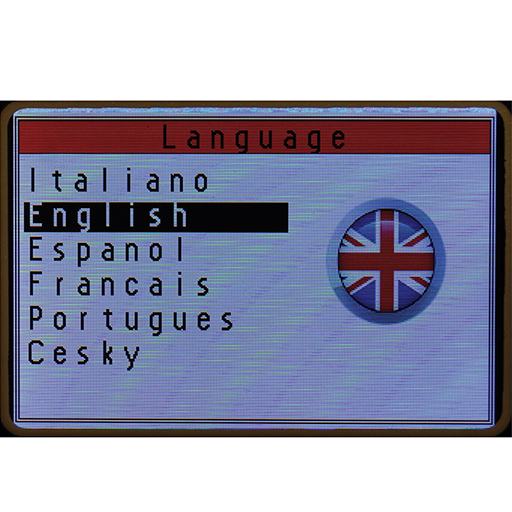

The user-friendly interface boasts a high-resolution color graphical display 128 by 80 pixels as well as a membrane keyboard. You can access pre-stored test procedures in multiple languages plus tailor test methods according to your needs.

Ergonomic and safe

This fully CE compliant machine features a double door system with see-through panels that provides a clear view and easy access to the testing chamber during compaction. If doors accidentally open, a safety switch will automatically stop the machine plus a STOP button is also close at hand in case of emergency.

Total functionality and easy operation

The machine is supplied with a universal impact rammer (50 mm and 2”dia.) that can be swapped in a few seconds. Adjusting the supplied weight is equally easy and can be done in one single operation.

A noise reduction steel cabinet with double top-and-front opening system and lined internally with soundproofing material is available on request.

Features

• Easy reference Standard software setting
• More than 30 tailored compaction cycles programmable by the user
• Automatic dropping height set by controller with no need for manual adjustments
• Dropping height’s continuous monitoring during compaction
• Automatic real-time adjustment delivering high precision throughout the whole compacting path
• Dropping height precision better than Standards’ recommendations — from beginning to end of compacting path
• Robust long-lasting transmission suitable for intensive use
• 30 strokes/min
• Safety guards and emergency stop button included
• Compatible with mould dia. 100 to 152.4 mm (4” and 6”)
• Universal impact rammer including circular dia. 50 mm and 2”
• Quick and easy rammer swap and weight adjustment
• Noise reduction cabinet available on request
• Upgrading kit for Australian Standards available on request

Models

• 33-T3713
  Universal Fully Automatic programmable Proctor/CBRcompactor for specimens from 100 mm - 4" to 150 mm- 6" mm diameter, conforming to EN, ASTM, AASHTO, BS, NF, AS and major international Standards. Universal rammer kit included. 220 V, 60 Hz, 1 ph
• 33-T3714
  Universal Fully Automatic programmable Proctor/CBRcompactor for specimens from 100 mm - 4" to 150 mm- 6" mm diameter, conforming to EN, ASTM, AASHTO, BS, NF, AS and major international Standards. Universal rammer kit included. 110 V, 60 Hz, 1 ph
