Digital Moisture Meter

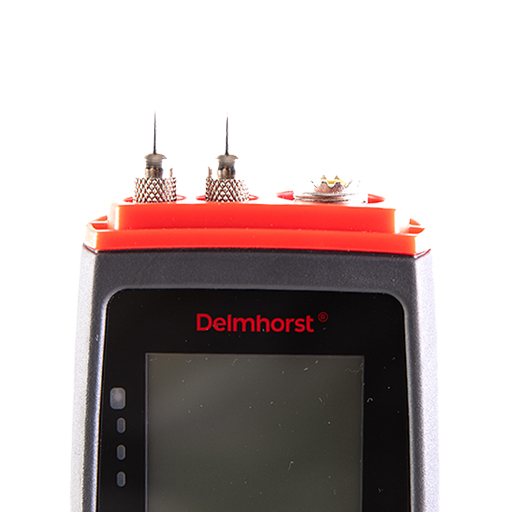

BDX-30 Digital Moisture Meter

The powerful BDX-30 brings all the design elements and functionality of the BDX-20 and introduces Bluetooth® integration to the Navigator family with the Delmhorst EDGE™ app! This exciting addition to the meter enhances your ability to ensure precise readings and export data from anywhere, including geotags and timestamps. With the EDGE™ app, users can also select from 37 species and materials. The BDX-30 brings today’s technology from the field to the office, making the most challenging project easier, more efficient, and most accurate.

• Delmhorst EDGE™ app with Bluetooth® connectivity
• Large, custom display with auto backlight - easy to read under all conditions
• Species/Materials – download up to 12 into the meter out of 37 available
• MC range:
• 6%-60% Wood (Douglas Fir)
• 0.1% -6% Drywall
• 0-100 Reference scale*
• Wood temperature correction (°F/°C)
• Alarm set point - alerts to user-selected MC level
• On-screen statistics – High, Low, Average, Standard Deviation, View all readings
• Internal calibration check
• Pins/electrode correction (insulated or non-insulated)
• Integral contact pins max 5/16” penetration (use 2498/A-100)
• Compatible with any Delmhorst external electrode
• Color-coded LED’s – adjustable through EDGE™ app
• Sturdy plastic carrying case – included
• Power – 2x AA batteries – Alkaline Energizer included
• “Low Batt” warning with audio
• Auto off timer. Set to 1 min, 4 min or 10 min
• QR code on meter for easy access to support materials
• Size: meter only - 8.65in (220mm) x 2.85in (72mm) x 1.55in (39mm); in carry case - 9.5in (241mm) x 6.5in (165mm) x 2.5in (64mm)
• Weight: meter only - 0.4.5oz (1.3g); in carry case - 18oz (510g)
• 2-year warranty on manufacturer’s defects. Bonus extended warranty with on-line registration

Options

BDX-30W/CS
Meter with carrying case : Includes the BDX-30 meter and 324CAS-0111 carrying case.

BDX-30/P01
P01 – Behind the Wall Package : Includes meter, 21-E electrode (3in penetration) and carrying case.

BDX-30/P02
P02 – Wood Flooring Package : Includes meter, 26-ES hammer electrode, extra pins and carrying case.

BDX-30/P03
P03 – Contractor/EIFS Package : Includes meter, 26-ES (and extra pins) and 21-E electrodes, HP-1 hole punch, 608-001 (7in spares for 21-E),pluck foam insert in case.
