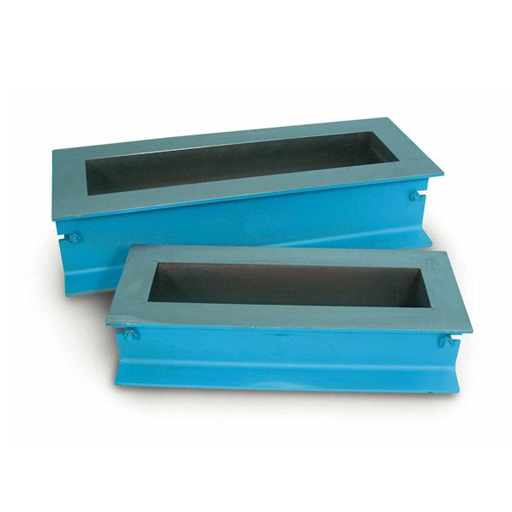

Concrete Beam Molds

Concrete Beam Molds

ASTM C31, C78, C192, C293, AASHTO T23, T97, T126...


View Quote

Fast response from our specialists

Why buy from Geneq? - find out more

Do you have a question?

Used to form concrete beams for third or center point testing.

Manufactured from heavy gauge steel. Sides and ends disassemble to permit removal of formed beam. Model LA-0249-01 features convenient carrying handles at each end. Lightweight plastic mold has interlocking joints and allows fast assembly and stripping. Econo Molds have a simple design, only using thumb screws for assembly.


Standards

ASTM C31, C78, C192, C293, AASHTO T23, T97, T126, BS 1881, 1881:108 EN 12390-1


ModelDescription
LA-0247-MBeam Mold, 10 x 10 x 40 cm
LA-0248-MBeam Mold, 10 x 10 x 50 cm
LA-0249Beam Mold, 6 in x 6 in x 20 in (15 x 15 x 51 cm)
LA-0249-01Beam Mold 6 in x 6 in x 20 in, w/Carrying Handles
LA-0249-PBeam Mold, 6 in x 6 in x 21 in (15 x 15 x 53 cm)
LA-0250Beam Mold, 6 in x 6 in x 22 in (15 x 15 x 56 cm)
LA-0251Beam Mold, 6 in x 6 in x 24 in (15 x 15 x 61 cm)
LA-0251-MBeam Mold, 15 x 15 x 75 cm
LA-0252
Beam Mold, Steel, 6 in x 6 in x 21 in
LA-0252-01
Beam Mold, Steel, 6 in x 6 in x 21 in (Econo Mold)
LA-0255Beam Mold, 6 in x 6 in x 30 in (15 x 15 x 76 cm)
LA-0256-MBeam Mold, 20 x 20 x 65 cm
LA-0260Beam Mold, 6 in x 6 in x 36 in (15 x 15 x 91 cm)
