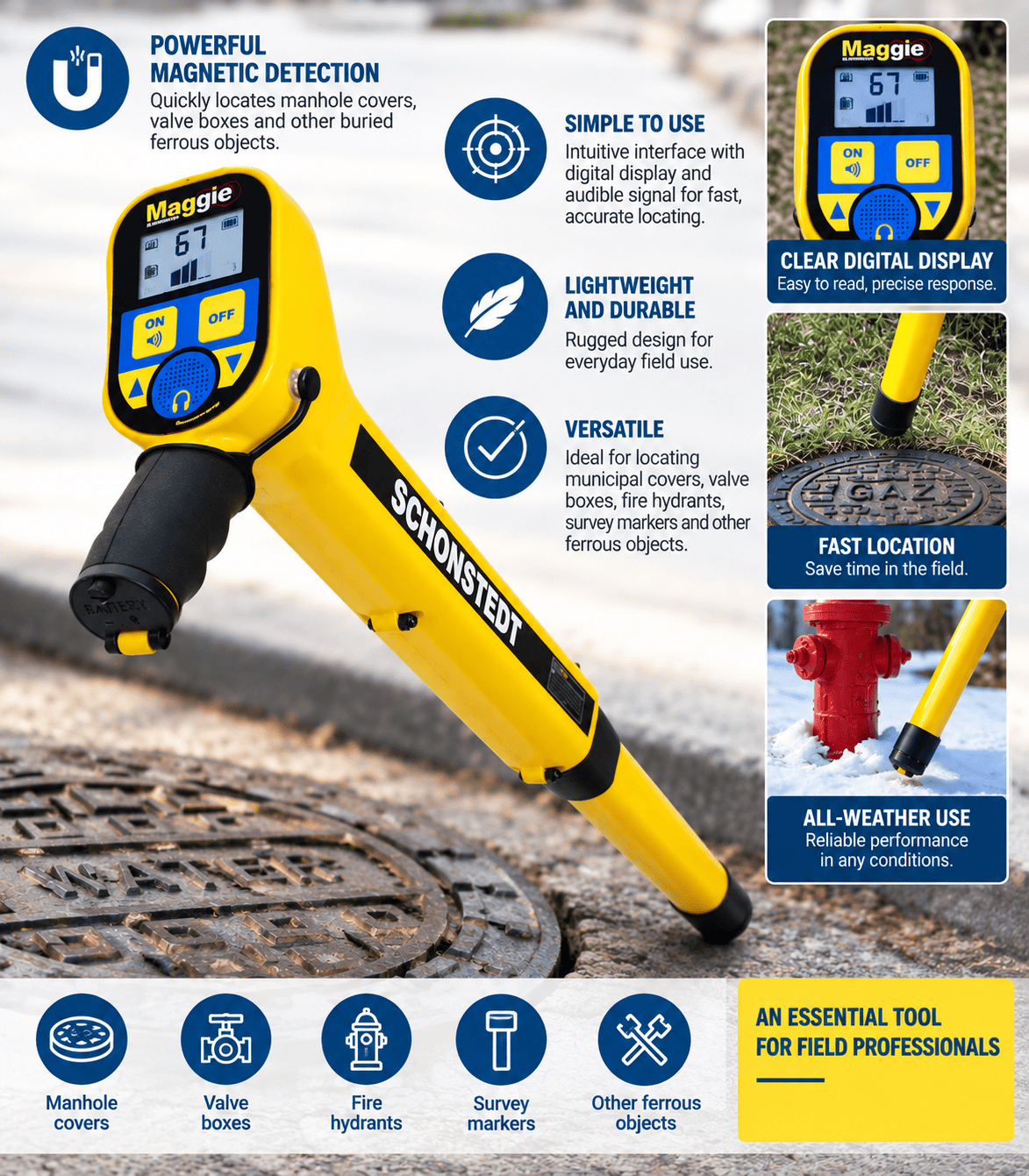

The Maggie is a pistol-grip magnetic locator that combines sensitivity and precision with single-handed operation and a visual display

The Maggie combines the best features of two flagship Schonstedt products: the sensitivity and precision of the GA-52Cx, and the single-handed operation of the GA-92XT.


Features

Highest Sensitivity

Our HeliFlux sensors provide high sensitivity allowing Schonstedt products to detect products down to a depth of 5.5m / 18’

Dust & Water Resistant (Rated IP54)

Waterproofing allows users to continue their search for ferrous metal objects in inclement weather, and even if they are under shallow snow or water!

Expanding bar graph indicates polarity (positive or negative) and relative signal strength

Our bar graphs aid in pinpointing the shape and the exact location of the extremities of buried ferrous objects, helping to reduce mis-digs and false locates

Modular construction and high performance components

The design and construction of our magnetic locators make them that rare combination of high performance, rugged and also straightforward to maintain and repair, leading to low overall total cost of ownership

7-year warranty

Users of Schonstedt products can be confident in the low total cost of ownership of their purchases because they are supported by a 7 year warranty. Some competitors offer 2 or more, but most only provide 1-year coverage.

Ergonomic and Durable

We have been working with users of Magnetic Locators since 1953 and have designed a suite of products that are great to use for extended periods and rugged enough to survive the rigors of every day usage

Easy access battery removal

Schonstedt Magnetic Locators are light on battery usage, but even when new batteries are required, it is quick and easy to swap over…no tools, no messing, no hold-up

HeliFlux® sensors

Schonstedt’s unique, patented HeliFlux magnetic field sensors provide much higher sensitivity than the standard ring core sensors that most of the competition uses, giving users of Schonstedt products a clear advantage when searching for deeply buried objects and when wanting to pinpoint the exact shape of utilities

Includes a soft-case and sling for ease of carrying through rough terrain, hands-free

When your hands are full of your other kit, and the site is the other side of the field, you’ll be glad of the soft case and sling to help you transport your Schonstedt Magnetic Locator

Applications

AUDIO OUTPUT

Signal increases in frequency with gradient field intensity. Idle frequency 10Hz

DISPLAY OUTPUT

Expanding bar graph indicates polarity (positive or negative) and relative signal strength

BATTERY INDICATOR

4-segment LCD

GAIN

4-Level LCD - Low (L),Medium (M),High (H),Extra High (XH)

GAIN MEMORY

Gain defaults to Medium when powering off/on

VOLUME

3 Levels: Muted, Medium, and High

INPUT POWER

One 9V Battery

BATTERY LIFE

24 Hours (intermittent use)

OPERATING TEMPERATURE

-13°F to 140°F (-25°C to 60°C)

OVERALL LENGTH

32.5" (83cm)

NOMINAL SENSOR SPACING

20" (50cm)

WEIGHT

Approximately 2.6 lbs (1.2kg)

CONSTRUCTION

High impact ABS

DUST & WATER PROTECTION

Rated IP54
