Global Standard in Viscosity Control
- Brookfield - DV2plus
- Ideal for resins, epoxies, and curing systems
- 7-inch touch screen display
- Expanded 740-speed control
Multi-purpose viscometer with continuous detection

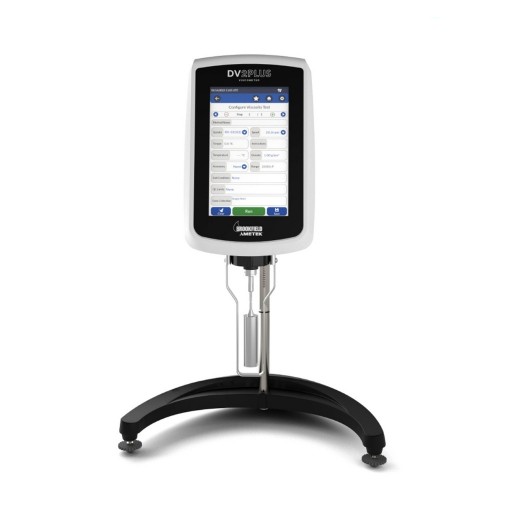

DV2Plus Viscometer is the successor to Brookfield’s most popular viscometer, the DV2T. It features a modern 7” touchscreen, expanded 740-speed control, and optional Bluetooth connectivity.
7” Full-Color Touchscreen
- High-resolution display (800x480) with wide viewing angle and intuitive interface
Favorites Menu
- Save and access your most-used test methods in just a tap
Viscosity Wizard:
- Guided setup for complex tests, now made simple
Post-Test Graphing with PDF Export:
- Instantly generate torque vs. time graphs and print results
Integrated Connectivity
- 4 USB-A ports, 1 USB-B port, and Bluetooth for PC connection, printers, barcode scanners, and more
740 Speeds for Ultimate Flexibility
- Ultra-fine control across a full range of testing applications
Built-in Gel Timer Functionality:
- Ideal for resins, epoxies, and curing systems
HPQA Integration:
- Full integration with the HPQA, Helipath Quick Action Stand for faster, more repeatable testing.
Performance You Can Trust:
- Accuracy: ±1.0% of range
- Repeatability: ±0.2%
- Compliance: Optional ISO 17025 Calibration, NIST traceable standards, 21 CFR Part 11 Compliance – ready with DV360
INCLUDED:
- DV2Plus Instrument
- Spindles (LV = 4, RV/HA/HB = 6)
- Carrying Case (not applicable to HA or HB models)
- Lab Stand
- Free 30-Day Trial Software Download
- Spindle Guard Leg (LV/RV)
WHY CHOOSE THE DV2PLUS VISCOMETER?
- Touchscreen Simplicity & Smarter Interface
7-Inch full-color PCAP touchscreen display provides 800x480 resolution with a wide viewing angle. The modern, clean interface simplifies testing while offering real-time test insights for optimal monitoring of:- Viscosity (cP or mPa•s)
- Temperature (°C or °F)
- Shear rate/stress
- % Torque
- Spindle/speed
- Step program status
- Built for Performance
Accuracy of ±1.0% and repeatability of ±0.2% ensure precise, dependable measurements across a vast range of viscosities – from thin inks to heavy industrial pastes. - Intelligent Features for Today’s Labs:
- Viscosity Wizard for guided test setup
- Post-Test Graphing (torque vs. time) and PDF print options
- Favorites Menu for quick access to your most-used test methods
- Gel Timer Functionality built into the standard model
- Automated Oscillation Testing
- Digital Leveling for easy setup
- Advanced Control & Connectivity
DV2Plus allows for ultra-fine control of test conditions with 740 speeds. Bluetooth connectivity and USB-A/B ports enable seamless integration with PCs, bar code scanners, printers, and future accessories. - Easy Software Integration (Optional):
- DV360™ software to achieve the most advanced viscosity testing and optional 21 CFR Part 11 Compliance.
- DV Create™ software to build up to 25-step methods, live-monitor tests via Bluetooth, or USB, and ensure compatibility with legacy DV2T files.
- DV2PLUS LV
- Viscosity Range: 1† – 6M
- Speed (RPM): 0.1 – 200 (740 steps)
- Included Spindles: 4 LV Spindles
- DV2PLUS RV
- Viscosity Range: 100†† – 40M
- Speed (RPM): 0.1-200 (740 steps)
- Included Spindles: 6 RV Spindles
- DV2PLUS HA
- Viscosity Range: 200†† – 80M
- Speed (RPM): 0.1-200 (740 steps)
- Included Spindles: 6 HA Spindles
- DV2PLUS HB
- Viscosity Range: 800†† – 320M
- Speed (RPM): 0.1-200 (740 steps)
- Included Spindles: 6 HB Spindles
Notes:
**† Achievable with UL Adapter
** †† Minimum with RV/HA/HB-1 Spindle
