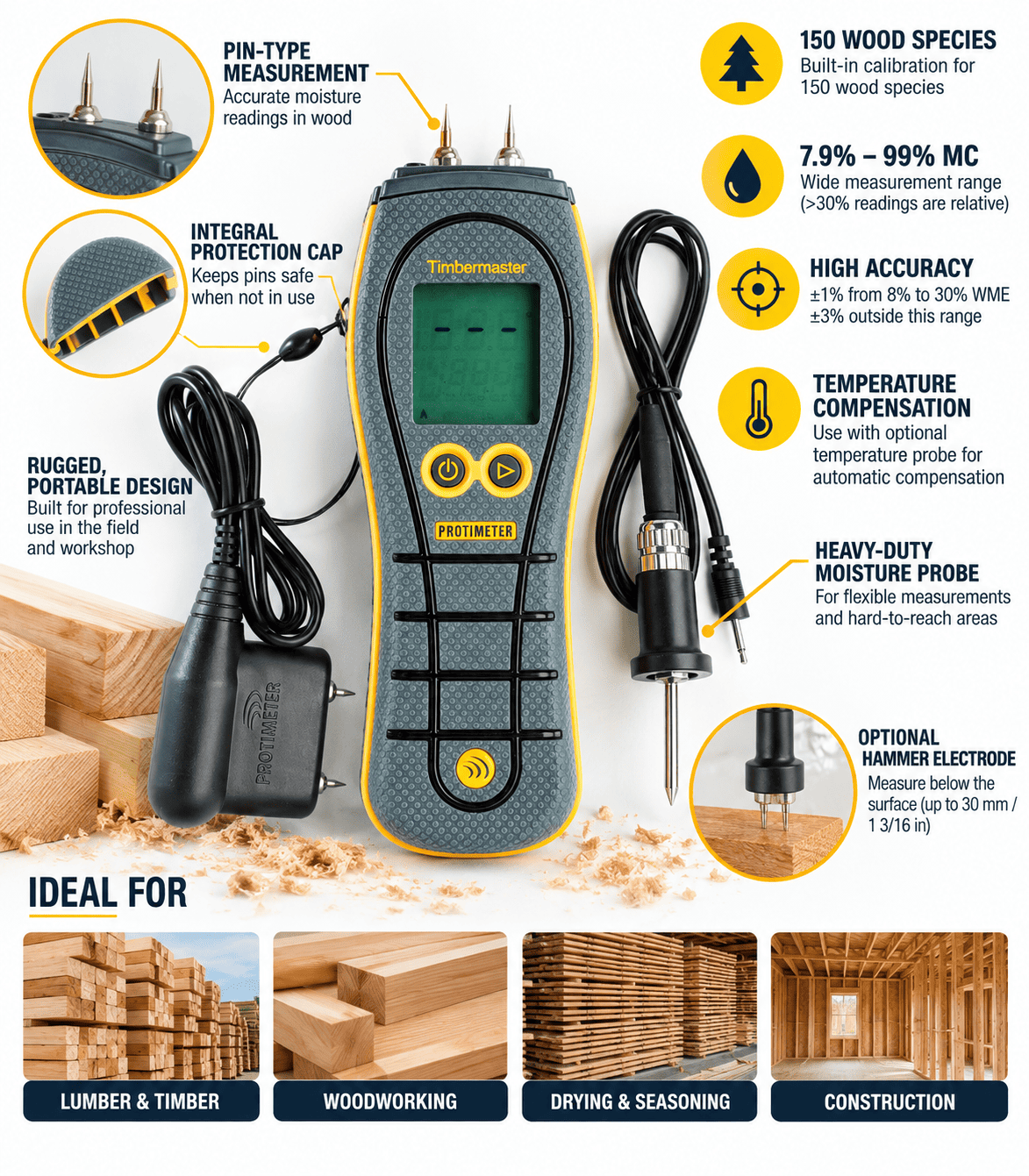

Humidimeter for wood Protimeter TimberMaster

Accurate Wood Moisture Measurement for Timber Quality Control

The Protimeter TimberMaster is a professional pin-type moisture meter developed specifically for the timber and woodworking industries. Designed for accurate moisture assessment across a wide range of wood products, it combines dedicated wood calibration with a rugged, straightforward handheld design suitable for routine quality-control measurements.

With calibration capability covering 150 wood species from around the world, the TimberMaster helps users account for the electrical characteristics of different timber species rather than relying on a single generic wood setting. Its large LCD display and simple controls make it practical for repeated moisture checks in workshops, timber processing facilities and other professional environments.

Wood-Species Calibration for More Meaningful Measurements

Different wood species can produce different electrical responses at the same moisture content. The TimberMaster addresses this through eight built-in calibration scales covering 150 wood species. Users select the appropriate calibration scale for the timber being tested, allowing the meter to provide measurements better matched to the particular wood species.

Pin-Type Moisture Measurement

The TimberMaster uses pin electrodes to measure moisture in wood. Its measurement range extends from 7.9% to 99% moisture content (MC),with readings above 30% treated as relative values. Within the 8% to 30% WME range, specified accuracy is ±1%, with ±3% accuracy outside this range.

The standard WME pins provide a maximum needle depth of approximately 10 mm (0.4 in). For applications requiring measurements farther beneath the wood surface, the TimberMaster can also be used with an optional hammer electrode.

Measure Moisture Below the Surface

An optional slide-hammer electrode allows the TimberMaster to investigate moisture below the immediate timber surface. This is particularly useful when surface conditions may not represent the moisture level deeper within the material. Protimeter specifies subsurface measurement to a depth of approximately 30 mm (1 3/16 in) when the appropriate hammer electrode is used.

Automatic Temperature Compensation

Wood temperature can influence pin-type moisture readings. When timber temperature differs significantly from approximately 20°C (70°F),the TimberMaster can be used with the optional temperature sensor. Once connected, the instrument automatically compensates the displayed moisture value for the effect of timber temperature, helping improve measurement reliability under colder or warmer conditions.

Built for Routine Timber Inspection

The TimberMaster combines a compact handheld format with a durable construction intended for regular professional use. A large LCD provides clear measurement visibility, while the audible buzzer can provide key-tone and measurement indication. The meter also provides a low-battery indication on the display.

Features and Benefits

• Professional pin-type moisture meter designed specifically for wood and timber
• Built-in calibration for 150 wood species
• Eight wood calibration scales
• 7.9% to 99% MC pin measurement range
• ±1% accuracy from 8% to 30% WME
• Large LCD for clear measurement viewing
• Rugged, compact handheld design
• Integral pins for convenient routine measurements
• Heavy-duty external moisture probe compatibility
• Optional hammer electrode for subsurface moisture measurements
• Optional temperature probe for automatic temperature compensation
• User-configurable audible measurement/key indication
• Low-battery indication on LCD
• CE, RoHS and ETL compliant
• 2-year warranty

Available Configurations

BLD5605: Supplied with the heavy-duty moisture probe and temperature probe.

BLD5609: Supplied with the heavy-duty moisture probe.

Compatible Accessories

The TimberMaster can be expanded with dedicated Protimeter accessories for specialized measurements. Compatible options include the BLD5055 Heavy Duty Hammer Electrode for measurements at varying depths in hardwood and softwood, the BLD5059 temperature sensor for automatic temperature compensation, and the BLD5060 Heavy Duty Moisture Probe. Other compatible pin probes and extension accessories are available for measurements in difficult-to-reach locations.

Questions & Answers

Why does the TimberMaster have different wood calibration scales?

Wood species have different electrical characteristics, which can affect resistance-based moisture measurements. Selecting the appropriate calibration scale helps the TimberMaster provide a moisture reading suited to the particular species being tested. The instrument provides eight calibration scales covering 150 wood species.

Are readings above 30% actual moisture-content measurements?

Protimeter specifies the measurement range as 7.9% to 99% MC, but readings above 30% are relative. For applications requiring quantitative moisture-content decisions, this distinction should be considered when interpreting high readings.

Can the TimberMaster measure moisture deeper inside a board?

Yes. The standard WME pins penetrate approximately 10 mm (0.4 in). For deeper investigation, an optional slide-hammer electrode can measure subsurface moisture to approximately 30 mm (1 3/16 in),helping reduce the influence of surface moisture conditions.

When should the temperature probe be used?

Temperature compensation becomes particularly useful when the timber being tested is significantly warmer or colder than approximately 20°C (70°F). With the compatible temperature sensor connected, the TimberMaster automatically compensates the moisture reading for the effect of timber temperature.

Does the TimberMaster require a different meter for different wood species?

No. Its built-in calibration system covers 150 wood species. The appropriate calibration scale is selected for the species being measured, allowing one instrument to be used across a broad range of timber types.

What is the difference between BLD5605 and BLD5609?

Both use the TimberMaster meter. The BLD5605 package includes the heavy-duty moisture probe and temperature probe, while the BLD5609 package includes the heavy-duty moisture probe without the temperature probe.

Can I check whether the TimberMaster is reading correctly?

Yes. Protimeter lists the BLD5086 Calcheck device as compatible with the TimberMaster and other Protimeter pin-type moisture meters. It provides a convenient way to check meter accuracy.
