• Appareil d’essai de la dureté

Appareil d’essai de la dureté

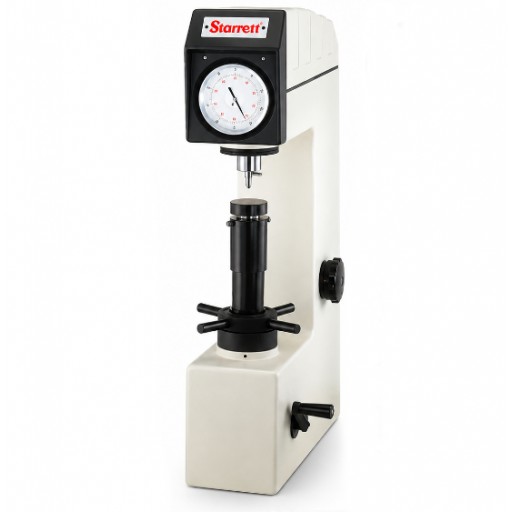

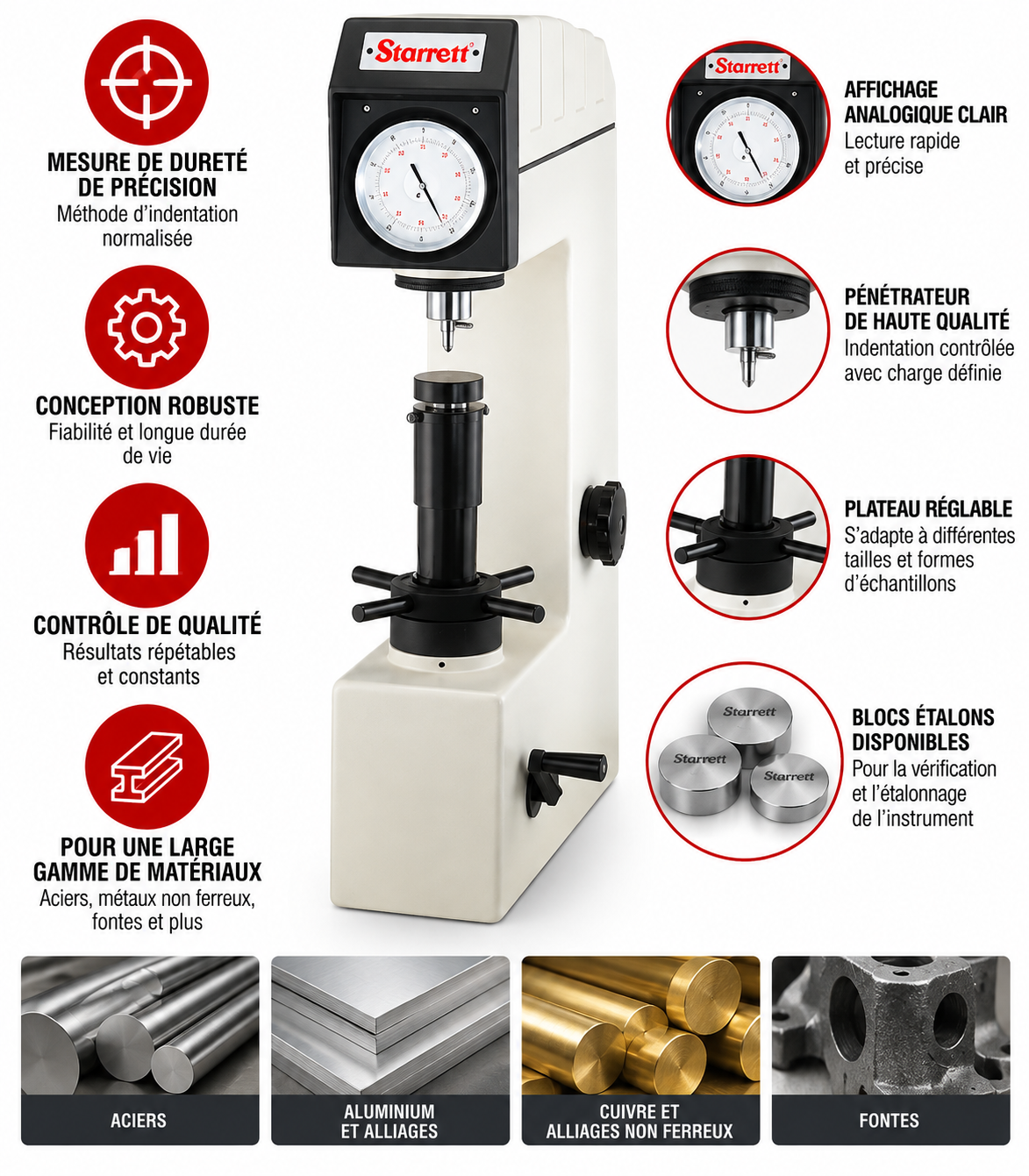

The 3814 Hardness Tester provides reliable Rockwell Hardness values on all types of metal and alloys, hard or soft, and in many shapes. This reliable bench hardness tester has a high quality casting, is ergonomically designed for easy operation and is engineered to ensure accurate results. It is an ideal basic hardness solution, economically priced to suit a variety of lab, workshop, toolroom and inspection department applications. The 3814 conforms to ASTM E-18 standard. The tester is furnished with a diamond indentor, a 1/16" (1.6mm) ball indentor, three certified test blocks, four test tables – 5.87" (149mm) and 2.5" (63.5mm) flat anvils, 5/8" (15.9mm) spot anvil and a standard vee anvil – and an accessory case.



Specifications
Major Load A: 60Kgf, B: 100Kgf, C: 150Kgf
Maximum Test Height 6.69" (169.9mm)
Minor Load 10Kgf
Results Display Analog – Dial Gage
Test Force Application (Dead weight applies test force)
Test Force Control Hydraulic Dashpot System
Throat Depth 6.6" (168mm)
Unit Height/Width/Depth 30 x 8.5 x 20" (762 x 216 x 508mm)
