• Milk Cryoscope

Milk Cryoscope


The freezing curve is illustrated on the graphic color display during the measurement. This enables the plateau search in accordance with the prescribed standard (DIN/ISO/IDF/5764) to be ideally tested and reproduced (patent-registred)

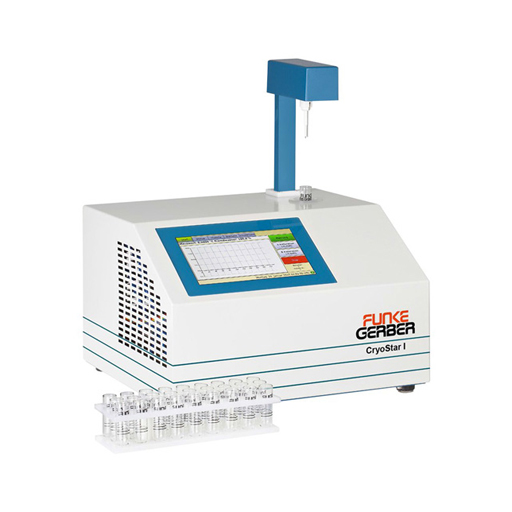

CryoStar I (single sample device) Automatic cryroscope
Reference method in accordance with ISO/IDF/DIN 5764. This device differts from the "CryoStar automatic" only in the sample feed system

Weight: 12,0 kg (net)
Dimensions: 290 x 380 x 190 mm (W x D x H) with measuring head: 240 mm (H)


The most important features at a glance
  • Forward-looking and flexible: fixed-time measurement, plateau search and maximum search features are available. All parameters relevant to these features can be programmed freely, and, of course, recroded as well. This meansthat the device can be adjusted to all national and international standards.
  • Easy-to-use: operation is menu-assisted in the language of your choice. Currently, Germain, English, French, Greek, Italian, Polish, Portuguese, Spanish, Turkish and Hungarian are available.
  • Efficient: a new cooling system provides for quick operational readiness even at high surrounding temperature (up to approx. 32°C)
  • Fast: up to 40 samples can be measured per hour, depending on the setting.
  • Multifunctional: the device has a parallel connection (for standard printers) and can be hooked up to PC with a serial interface. This makes it possible to map the freezing curves on the screen during a measurement and, when necessary, to save it. An efficient zoom function tops off the image. The software needed for this is included in the scope of delivery.
  • User-friendly: the operation of the device is uncomplicated. The percentage of infiltration water is immediately indicated and printed out. The calibration is executed automatically. All setting and calibrations are permanently saved to non-volatile storage.


Connection 230V / 115V CA (50...60 Hz), 180 VA
Measurement resolution 0,0001°C (0,1 m°C)
Reproducibility ± 0,002°C (± 2,0 m°C)
Measuring range 0,0000°C à -1,5000°C
Sample volume 2,0 ml à 2,5 ml (recommended value: 2,2 ml)
Sample turnover up to 40/h; typically 30/h
Interfaces 1 parallel, 1 serial (RS232)
Cooling time approx. 15 minutes
Display graphic color display, freezing curve, measurement result (°C), (% infiltration water), date, time, measurement conditions
Protocol printing measurement result (°C), (% infiltration water), date, time, measurement conditions
