New
Powerful Motor and Magnet Mixes Samples Up To 200 L
OHAUS offers four models for stirring capacities between 25 to 200 L, allowing you to choose the right model for your application. The broad top plate surface allows processing of oversized vessels such as carboys for your large volume stirring. The powerful magnetic drive is also capable of mixing highly viscous materials.
Features

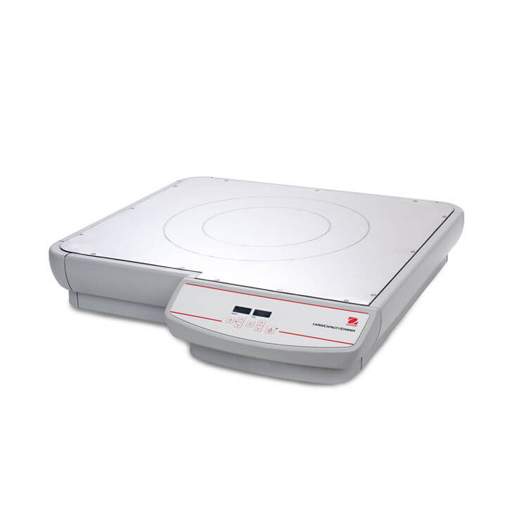

- High Volume Stirrers (STLC1DG and STLC2DG) with a 100 or 200 L capacity are made with a stainless steel base offering durability and stability, and feature a 54 x 63 cm stainless steel top plate.

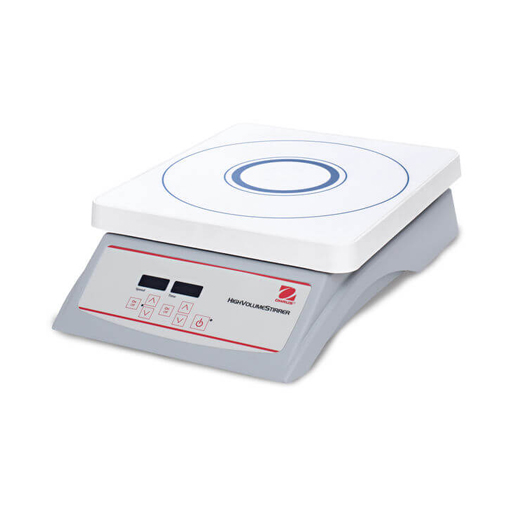

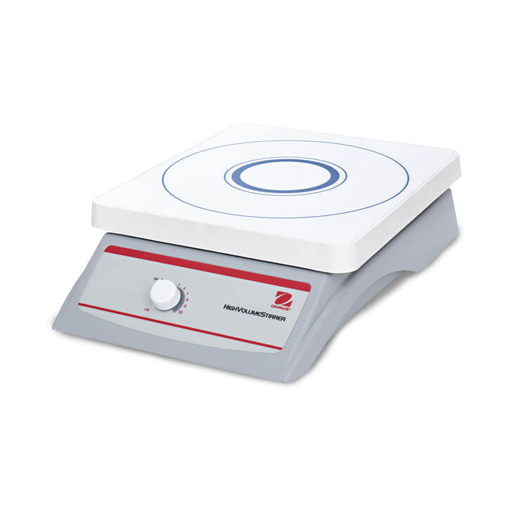

- High Volume Stirrers (STHVAL and STHVDG) have a large 32 x 28 cm top plate that is chemical-resistant with a white reflective surface that is easy to clean. Digital and nondigital models allow you to choose the right model for your application.
- Speed ramping feature slowly increases the motor speed for improved safety and enhanced coupling. Avoids splashing, improves spin bar control and provides excellent low-end speed control.
Models
STHVAL
STHVDG
STLC1DG
STLC2DG
| Model | STHVAL | STHVDG | STLC1DG | STLC2DG |
| Control | Analog | Digital | ||
| Speed Range | 60 rpm to 1400 rpm | 100 rpm to 1800 rpm | 100 rpm to 1650 rpm | |
| Timer | N/A | 1 second to 160 hours | ||
| Capacity | 25 L | 100 L | 200 L | |
| Plate Construction | Glass Filled Nylon | Stainless Steel | ||
| Dimensions (H x L x W) | 4 x 17 x 11 in. / 10.2 x 43.2 x 27.9 cm | 5.25 x 28.5 x 26.75 in. / 13.3 x 72.4 x 68 cm | ||
| Plate Dimensions (L x W) | 12.5 x 11 in. / 31.8 x 27.9 cm | 21.25 x 25 in. / 54 x 63.5 cm | ||
| Net Weight | 13.6 lb / 6.2 kg | 63.5 lb / 28.8 kg | ||
| Power | 120 V, 50/60 Hz | 120 V, 50/60 Hz | ||
| Power Consumption | 75 W | 90 W | ||
| Working Environment | 41 °F – 104 °F, 80% RH*, non-condensing / 5 °C – 40 °C, 80% RH*, non-condensing | |||
*RH = Relative Humidity
