Washdown Bench Scales

  • Ohaus - DEFENDER™ 3000 WASHDOWN - I-D33
  • Applications : Weighing, Checkweighing, Counting, Totalization
  • Display : 7 Segment LCD with multicolor backlight
  • Operation : Internal power supply with power cord (included) or rechargeable battery (included)
  • Communication : Standard RS232 and optional USB Device or Ethernet
  • Construction : 304-grade stainless steel platform and frame, stainless steel IP66 indicator, IP67 load cell, non-slip adjustable rubber feet
  • Design Features : 150% overload protection

Can we help you?

D33XW15C1R5

Model : D33XW15C1R5

  • Maximum Capacity : 30 lb (15 kg)
  • Readability : 0.005 lb (2 g)
  • Readability (Certified) : 0.01 lb (5 g)

D33XW15C1R6

Model : D33XW15C1R6

  • Maximum Capacity : 30 lb (15 kg)
  • Readability : 0.005 lb (2 g)
  • Readability (Certified) : 0.01 lb (5 g)

D33XW30C1R5

Model : D33XW30C1R5

  • Maximum Capacity : 60 lb (30 kg)
  • Readability : 0.01 lb (5 g)
  • Readability (Certified) : 0.02 lb (10 g)

D33XW30C1R6

Model : D33XW30C1R6

  • Maximum Capacity : 60 lb (30 kg)
  • Readability : 0.01 lb (5 g)
  • Readability (Certified) : 0.02 lb (10 g)

D33XW75C1R5

Model : D33XW75C1R5

  • Maximum Capacity : 150 lb (75 kg)
  • Readability : 0.02 lb (10 g)
  • Readability (Certified) : 0.05 lb (50 g)

D33XW75C1R6

Model : D33XW75C1R6

  • Maximum Capacity : 150 lb (75 kg)
  • Readability : 0.02 lb (10 g)
  • Readability (Certified) : 0.05 lb (50 g)

D33XW75C1L5

Model : D33XW75C1L5

  • Maximum Capacity : 150 lb (75 kg)
  • Readability : 0.02 lb (10 g)
  • Readability (Certified) : 0.05 lb (50 g)

D33XW75C1L7

Model : D33XW75C1L7

  • Maximum Capacity : 150 lb (75 kg)
  • Readability : 0.02 lb (10 g)
  • Readability (Certified) : 0.05 lb (50 g)

D33XW150C1L5

Model : D33XW150C1L5

  • Maximum Capacity : 300 lb (150 kg)
  • Readability : 0.05 lb (20 g)
  • Readability (Certified) : 0.1 lb (50 g)

D33XW150C1L7

Model : D33XW150C1L7

  • Maximum Capacity : 300 lb (150 kg)
  • Readability : 0.05 lb (20 g)
  • Readability (Certified) : 0.1 lb (50 g)

D33XW150C1X5

Model : D33XW150C1X5

  • Maximum Capacity : 300 lb (150 kg)
  • Readability : 0.05 lb (20 g)
  • Readability (Certified) : 0.1 lb (50 g)

D33XW150C1X7

Model : D33XW150C1X7

  • Maximum Capacity : 300 lb (150 kg)
  • Readability : 0.05 lb (20 g)
  • Readability (Certified) : 0.1 lb (50 g)

D33XW300C1X5

Model : D33XW300C1X5

  • Maximum Capacity : 600 lb (300 kg)
  • Readability : 0.1 lb (50 g)
  • Readability (Certified) : 0.2 lb (100 g)

D33XW300C1X7

Model : D33XW300C1X7

  • Maximum Capacity : 600 lb (300 kg)
  • Readability : 0.1 lb (50 g)
  • Readability (Certified) : 0.2 lb (100 g)



Stainless Steel Bench Scales for Basic Industrial Washdown Applications

The Defender 3000 Washdown Bench Scales are ideal for general weighing, simple counting and check weighing applications in damp environments, or when washdown cleaning is required. The Defender 3000 Series features a simple, yet rugged, stainless steel design and IP66 stainless steel indicator with tactile keys, multicolor backlit LCD display, AC or standard rechargeable battery operation and flexible mounting capabilities.


Unique Features:

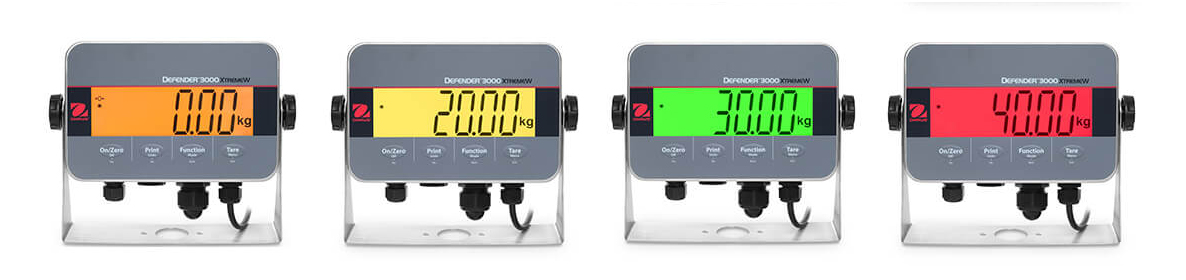

  • Results are clearly shown using the large, bright backlit LCD display. In Checkweighing mode display changes color (yellow/green/red) to alert when within the target weight range
  • This tough industrial scale features a 304-stainless steel platform, frame, column and IP67 load cell. Indicator features an IP66 protected 304-stainless steel housing and mounting bracket.
  • Features software for Parts Counting, Checkweighing and Totalization. Includes RS232 with optional second port USB Device or Ethernet for printing or data connectivity.

Column Mount Bench Scales

Modeli-D33XW15C1R6i-D33XW30C1R6i-D33XW75C1R6i-D33XW75C1L7
Capacity x Default Readability

15 kg x 2 g

30 lb x 0.005 lb

480 oz x 0.1 oz

30 kg x 5 g

60 lb x 0.01 lb

960 x 0.2 oz

75 kg x 10 g

150 lb x 0.02 lb

2,400 oz x 0.5 oz

75 kg x 10 g

150 lb x 0.02 lb

2,400 oz x 0.5 oz

Capacity x Certified/Approved Readability

15 kg x 5 g

30 lb x 0.01 lb

480 oz x 0.2 oz

30 kg x 10 g

60 lb x 0.02 lb

960 oz x 0.5 oz

75 kg x 50 g

150 lb x 0.05 lb

2,400 oz x 1 oz

75 kg x 50 g

150 lb x 0.05 lb

2,400 oz x 1 oz

Maximum Displayed Resolution 1:7,5001:6,0001:7,5001:7,500
Linearity/Repeatability ±1d
Maximum Certified Resolution 1:3,000
Indicator 304 stainless steel indicator
Column 330 mm / 13 in stainless steel680 mm / 26.8 in stainless stee
Base Construction Stainless steel removable weighing platform with stainless steel frame, silicon sealed IP67 stainless steel loadcell
Safe Overload Capacity 150% of maximum capacity
Stabilization Time Within 1 second
Operating Temperature Range 14°F to 104°F / -10°C to 40°C
Scale Dimensions (A x B x C x D x E x F)

355 x 305 x 121.8 x 75 x 541.6 x 481.9 mm

14 x 12 x 4.8 x 3 x 21.3 x 19 in

550 x 420 x 134 x 80 x 896.1 x 685.6 mm

21.7 x 16.5 x 5.3 x 3.1 x 35.3 x 27 in

Shipping Dimensions (L x W x H)

642 x 497 x 212 mm

25.3 x 19.6 x 8.3 in

857 x 564 x 225 mm

33.7 x 22.2 x 8.9 in

Approx. Net Weight 12.3 kg19.2 kg
Approx. Shipping Weight 15.3 kg23.3 kg


Modeli-D33XW150C1L7i-D33XW150C1X7i-D33XW300C1X7
Capacity x Default Readability

150 kg x 20 g

300 lb x 0.05 lb

4,800 oz x 1 oz

150 kg x 20 g

300 lb x 0.05 lb

4,800 oz x 1 oz

300 kg x 50 g

600 lb x 0.1 lb

Capacity x Certified/Approved Readability

150 kg x 50 g

300 lb x 0.1 lb

150 kg x 50 g

300 lb x 0.1 lb

300 kg x 100 g

600 lb x 0.2 lb

Maximum Displayed Resolution1:7,5001:6,000
Linearity/Repeatability±1d
Maximum Certified Resolution 1:3,000
Indicator 304 stainless steel indicator
Column 680 mm / 26.8 in stainless steel
Base Construction Stainless steel removable weighing platform with stainless steel frame, silicon sealed IP67 stainless steel loadcell
Safe Overload Capacity150% of maximum capacity
Operating Temperature Range14°F to 104°F / -10°C to 40°C
Scale Dimensions (A x B x C x D x E x F)

550 x 420 x 134 x 80 x 896.1 x 685.6 mm

21.7 x 16.5 x 5.3 x 3.1 x 35.3 x 27 in

650 x 500 x 150 x 90 x 894.6 x 784.6 mm

25.6 x 19.7 x 5.9 x 3.5 x 35.2 x 30.9 in

Shipping Dimensions (L x W x H)

857 x 564 x 225 mm

33.7 x 22.2 x 8.9 in

1,022 x 687 x 247 mm

40.2 x 27 x 9.7 in

Approx. Net Weight 19.2 kg31.8 kg
Approx. Shipping Weight 23.3 kg35.3 kg


Front Mount Bench Scales

Modeli-D33XW15C1R5i-D33XW30C1R5i-D33XW75C1R5i-D33XW75C1L5
Capacity x Default Readability

15 kg x 2 g

30 lb x 0.005 lb

480 oz x 0.1 oz

30 kg x 5 g

60 lb x 0.01 lb

960 x 0.2 oz

75 kg x 10 g

150 lb x 0.02 lb

2,400 oz x 0.5 oz

Maximum Displayed Resolution1:7,5001:6,0001:7,500
Linearity/Repeatability±1d
Capacity x Certified/Approved Readability

15 kg x 5 g

30 lb x 0.01 lb

480 oz x 0.2 oz

30 kg x 10 g

60 lb x 0.02 lb

960 oz x 0.5 oz

75 kg x 50 g

150 lb x 0.05 lb

2,400 oz x 1 oz

Maximum Certified Resolution 1:3,000
Indicator 304 stainless steel indicator
Mount 304 stainless steel front-mount bracket with handler
Base Construction Stainless steel removable weighing platform with stainless steel frame, silicon sealed IP67 stainless steel loadcell
Safe Overload Capacity 150% of maximum capacity
Stabilization Time Within 1 second
Operating Temperature Range 14°F to 104°F / -10°C to 40°C
Scale Dimensions (A x B x C x D x E x F)

355 x 305 x 121.8 x 75 x 130 x 645.5 mm

14 x 12 x 4.8 x 3 x 5.1 x 25.4 in

550 x 420 x 134 x 80 x 132.9 x 842 mm

21.7 x 16.5 x 5.3 x 3.1 x 5.2 x 33.1 in

Shipping Dimensions (L x W x H)

857 x 564 x 225 mm

33.7 x 22.2 x 8.9 in

1,022 x 687 x 247 mm

40.2 x 27 x 9.7 in

Approx. Net Weight11.9 kg18.1 kg
Approx. Shipping Weight14.3 kg22.2 kg


Modeli-D33XW150C1L5i-D33XW150C1X5i-D33XW300C1X5
Capacity x Default Readability

150 kg x 20 g

300 lb x 0.05 lb

4,800 oz x 1 oz

300 kg x 50 g

600 lb x 0.1 lb

Maximum Displayed Resolution1:7,5001:6,000
Linearity/Repeatability±1d
Capacity x Certified/Approved Readability

150 kg x 50 g

300 lb x 0.1 lb

300 kg x 100 g

600 lb x 0.2 lb

Maximum Certified Resolution1:3,000
Indicator304 stainless steel indicator
Mount304 stainless steel front-mount bracket with handle
Base Construction Stainless steel removable weighing platform with stainless steel frame, silicon sealed IP67 stainless steel loadcell
Safe Overload Capacity 150% of maximum capacity
Stabilization Time Within 1 second
Operating Temperature Range 14°F to 104°F / -10°C to 40°C
Scale Dimensions (A x B x C x D x E x F)

550 x 420 x 134 x 80 x 132.9 x 842 mm

21.7 x 16.5 x 5.3 x 3.1 x 5.2 x 33.1 in

650 x 500 x 150 x 90 x 133 x 941 mm

25.6 x 19.7 x 5.9 x 3.5 x 5.2 x 37 in

Shipping Dimensions (L x W x H)

1,022 x 687 x 247 mm

40.2 x 27 x 9.7 in

1,022 x 687 x 247 mm

40.2 x 27 x 9.7 in

Approx. Net Weight 18.1 kg30.8 kg
Approx. Shipping Weight 22.2 kg34.3 kg

Indicator

Modeli-DT33XW
Construction304 stainless steel housing and mounting bracket
Protection IP66
Weighing Units Kilogram, Gram, Pound, Ounce, Pound: Ounce
Application Modes Weighing, Parts Counting, Checkweighing and Totalization
Display 6-digit, 7-segment LCD display with multi-color backlight, 45 mm / 1.8 in high digits
Check Indicator 3 color (red, green, yellow) backlight
Keyboard 4 membrane function keys
Auto-zero Tracking Off, 0.5 d, 1 d or 3 d
Zeroing Range 2% or 100% of capacity
Interface RS232 included Optional second port USB Device or Ethernet
Power 100-240 VAC / 50/60 Hz Universal Power Supply, hardwired or standard internal rechargeable battery
Battery Life Up to 100 hours continuous use with backlight off
Calibration Zero, Span or 3 point-Linear

Dimensions
