Imacimus 10 Multi ION & pH meter
The Imacimus 10 by NT Sensors is a highly versatile multi-ion meter designed to measure up to ten key parameters, including seven different ions, pH, conductivity, and water hardness, all within a 60-second timeframe. It is ideal for environmental, agricultural, and hydroponic applications, as it allows for quick and precise analysis of samples such as wastewater, seawater, drinking water, fertilizers, and sap.
Key features of the Imacimus 10 include its multi-channel capability, supporting simultaneous calibration across all sensors, and its wide measurement range from 1 to over 10,000 mg/L. The device is designed for portability, requiring only a USB connection for power, and includes software for managing and exporting data directly to Excel for further analysis.
This compact laboratory solution is beneficial for those in precision agriculture, environmental science, and aquaculture, as it simplifies nutrient management by quickly assessing ion concentration and other critical parameters.

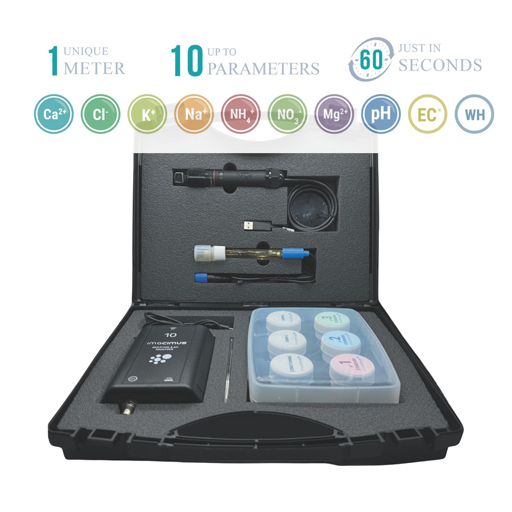

The NT Sensors imacimus 10 kit includes:

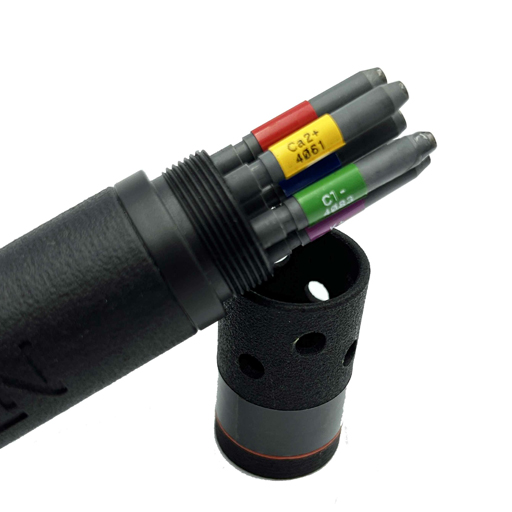

Mini ISE: Ca+2, Cl-, K+, Na+, NH4+, NO3- and Mg2+
- 1x ISE Ammonium Electrode
- 1x ISE Chloride Electrode
- 1x ISE Magnesium Electrode
- 1x ISE Nitrate Electrode
- 1x ISE Sodium Electrode
- 1x ISE Potassium Electrode
- 1x ISE Calcium Electrode

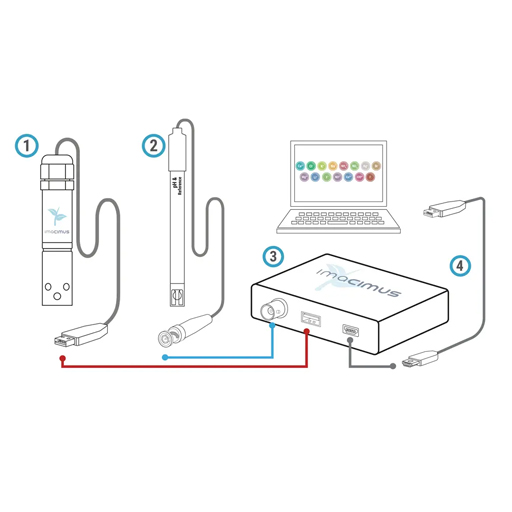

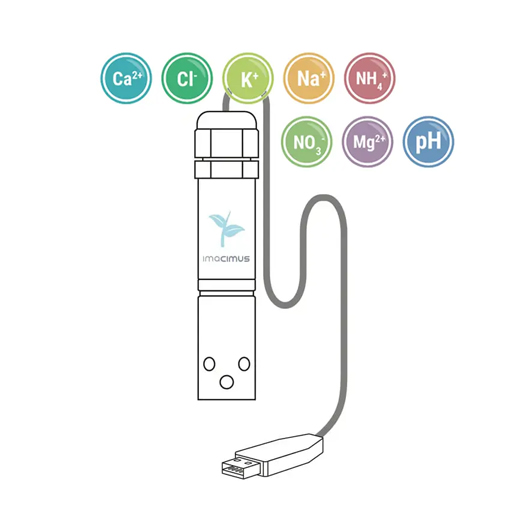

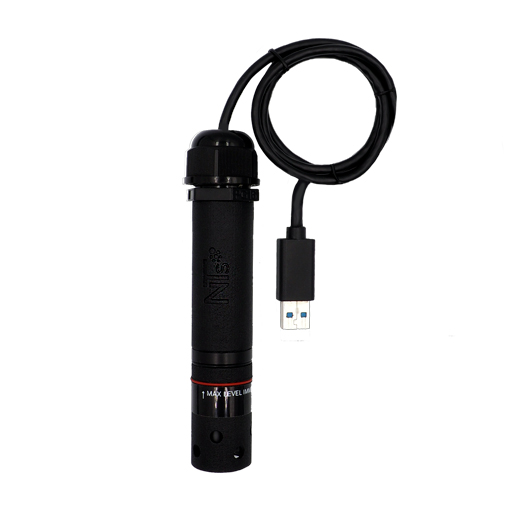

- 1x Multi-ion probe for up to 7 ISE, without electrodes, USB connector
- 1x Tweezers

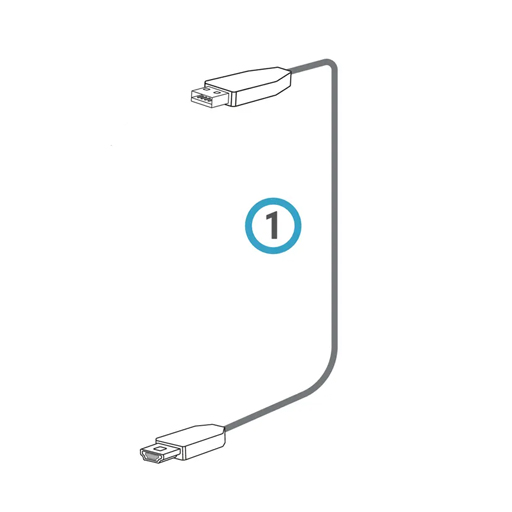

- 1x USB cable

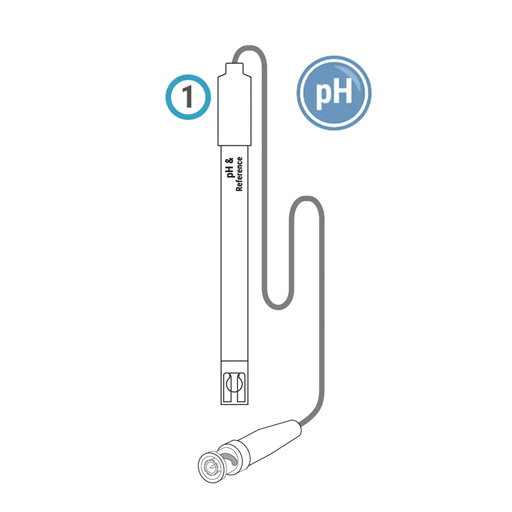

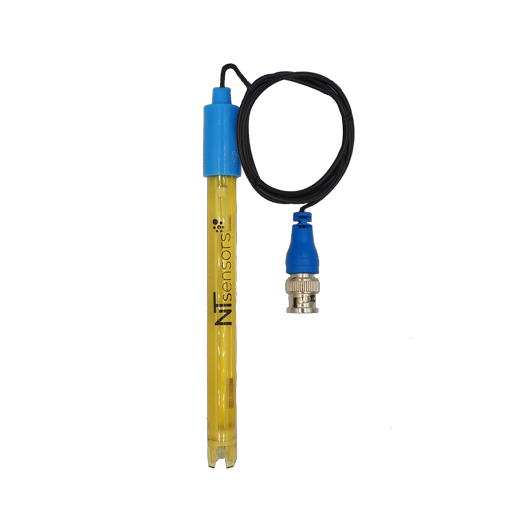

- 1x pH/Ref 1 m cable, BNC connector
- 1x IC10 multi ion meter
- 1x Buffer pH4 & pH7 (50 mL)
- 1x Conditioning solution for Multi ION 1X125 ml
- 1x Carrying case
- 1x Calibration standards Multi ION medium range (3×125 ml)
- 1x Calibration case (without reagents)
imacimus 10 using the same operating principle as standard laboratory electrodes
- The potentiometry technique (ISE) is relatively inexpensive and easy to operate.
- Ion selective electrodes have a wide concentration measurement range.
- The life expectancy of Ammonium ISE is 9 months, even if stored on a shelf or installed in a probe.
| ISE range | 1 to 10,000 ppm |
| ISE/pH resolution | 0 to 14 pH is 0.01 pH 0 to 1.0 ppm is 0.1 ppm 1 to 9000 ppm is 1 ppm |
| ISE accuracy | ±4% * In the absence of interfering ions, the accuracy can be better than 1 mV, which corresponds to 4% of the measurement. |
| Repeatability ISE | ±10% monovalent ** Repeatability in the measurement of a standard solution after calibration. |
| ISE/pH calibration | From 2 to 5 points. Fully customizable calibration standards. |
| Power Supply | USB – 5V – 0.5A |
| Temperature range | 4-50 ºC |
| Interface | Imacimus Windows software application ws |
| Connectivity | Mini USB female connector type AB |
| Method | Electrochemical / ISE |
