Precision Balances

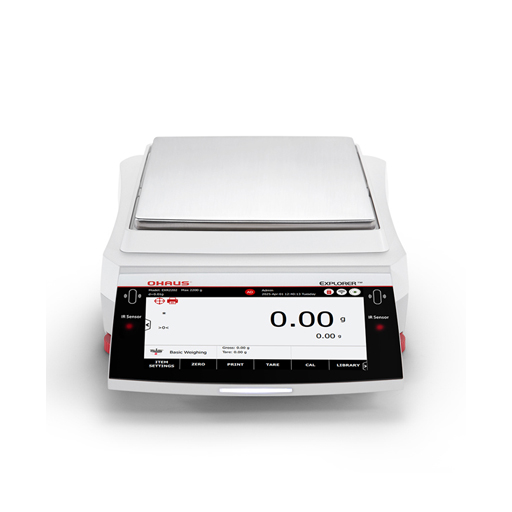

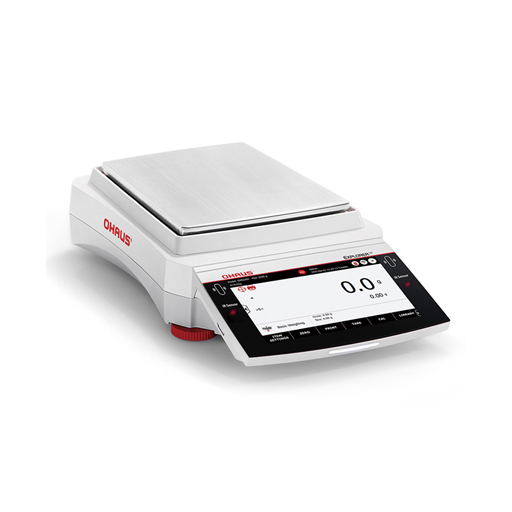

- Ohaus - Explorer™ Precision EXR
Get our best quote for one or multiple products.
Why buy from Geneq? - find out more
Do you have a question?
Model : EXR223
- Maximum Capacity: 220 g
- Readability: 1 mg
- Pan Size: 5.1 in x 5.1 in (130 mm x 130 mm)
Model : EXR223N
- Maximum Capacity: 220 g
- Readability: 1 mg
- Pan Size: 5.1 in x 5.1 in (130 mm x 130 mm)
Model : EXR423
- Maximum Capacity: 420 g
- Readability: 1 mg
- Pan Size: 5.1 in x 5.1 in (130 mm x 130 mm)
Model : EXR423N
- Maximum Capacity: 420 g
- Readability: 1 mg
- Pan Size: 5.1 in x 5.1 in (130 mm x 130 mm)
Model : EXR623
- Maximum Capacity: 620 g
- Readability: 1 mg
- Pan Size: 5.1 in x 5.1 in (130 mm x 130 mm)
Model : EXR623N
- Maximum Capacity: 620 g
- Readability: 1 mg
- Pan Size: 5.1 in x 5.1 in (130 mm x 130 mm)
Model : EXR1203
- Maximum Capacity: 1,200 g
- Readability: 1 mg
- Pan Size: 5.1 in x 5.1 in (130 mm x 130 mm)
Model : EXR1203N
- Maximum Capacity: 1,200 g
- Readability: 1 mg
- Pan Size: 5.1 in x 5.1 in (130 mm x 130 mm)
Model : EXR2202
- Maximum Capacity: 2,200 g
- Readability: 0.01 g
- Pan Size: 7.9 in x 7 in (201 mm x 178 mm)
Model : EXR2202N
- Maximum Capacity: 2,200 g
- Readability: 0.01 g
- Pan Size: 7.9 in x 7 in (201 mm x 178 mm)
Model : EXR4202
- Maximum Capacity: 4,200 g
- Readability: 0.01 g
- Pan Size: 7.9 in x 7 in (201 mm x 178 mm)
Model : EXR4202N
- Maximum Capacity: 4,200 g
- Readability: 0.01 g
- Pan Size: 7.9 in x 7 in (201 mm x 178 mm)
Model : EXR6202
- Maximum Capacity: 6,200 g
- Readability: 0.01 g
- Pan Size: 7.9 in x 7 in (201 mm x 178 mm)
Model : EXR6202N
- Maximum Capacity: 6,200 g
- Readability: 0.01 g
- Pan Size: 7.9 in x 7 in (201 mm x 178 mm)
Model : EXR8202
- Maximum Capacity: 8,200 g
- Readability: 0.01 g
- Pan Size: 7.9 in x 7 in (201 mm x 178 mm)
Model : EXR8202N
- Maximum Capacity: 8,200 g
- Readability: 0.01 g
- Pan Size: 7.9 in x 7 in (201 mm x 178 mm)
Model : EXR12202
- Maximum Capacity: 12,200 g
- Readability: 0.01 g
- Pan Size: 7.9 in x 7 in (201 mm x 178 mm)
Model : EXR12202N
- Maximum Capacity: 12,200 g
- Readability: 0.01 g
- Pan Size: 7.9 in x 7 in (201 mm x 178 mm)
Model : EXR6201
- Maximum Capacity: 6,200 g
- Readability: 0.1 g
- Pan Size: 7.9 in x 7 in (201 mm x 178 mm)
Model : EXR8201
- Maximum Capacity: 8,200 g
- Readability: 0.1 g
- Pan Size: 7.9 in x 7 in (201 mm x 178 mm)
Model : EXR10201
- Maximum Capacity: 10,200 g
- Readability: 0.1 g
- Pan Size: 7.9 in x 7 in (201 mm x 178 mm)
Built for Precision, Powered by Innovation
The new Explorer EXR series offers an intuitive interface, outstanding weighing performance, and an environmentally friendly design. The new generation Explorer establishes a groundbreaking standard for laboratory operations.
Features
Achieve consistent results with built-in automatic calibration, touchless sensors and a ventilated weighing pan. Get reliable data with the digital high-speed load cell.
An intuitive 7-inch glass touchscreen, digital leveling, and simplified data management is easy to use. With an effortless installation and chemical-protective design it ensures efficiency and comfort
Supports HID connection to PC or keyboard without drivers, and provides 2-way communication with RS232, USB, Ethernet, Bluetooth, and WiFi for seamless data transfer
Product Details
Applications
Basic Weighing, Parts Counting, Check Counting, Percent Weighing, Check Weighing, Dynamic Weighing, Totalization, Formulation, Differential, Density Determination, Peak Hold
Operation
AC Adapter Input: 100-240 VAC 0.5A 50-60 Hz; AC Adapter Output: 12 VDC 1.5A
Communication

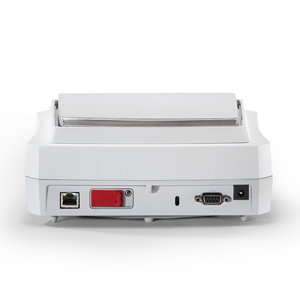

USB Host (Type A) x 2, USB Device (Type C) x 1, Ethernet (RJ45) x 1, RS232 x 1; Optional Wi-Fi, Bluetooth Dongle
Display

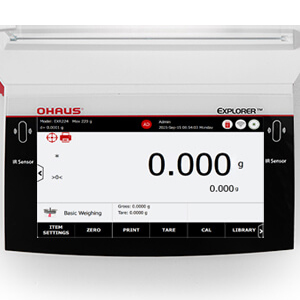

7-inch TFT 16.7M Color Touch Screen with Glass Overlay
Construction

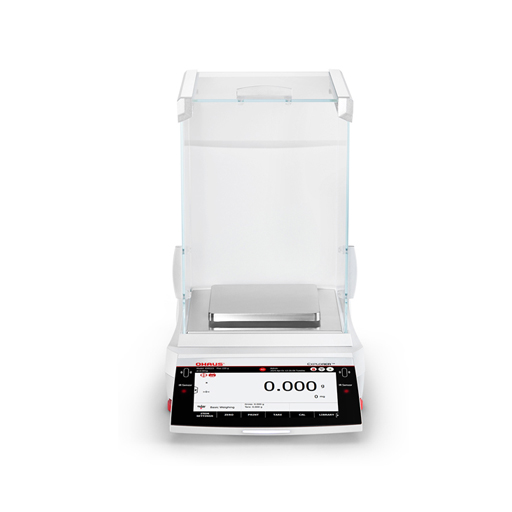

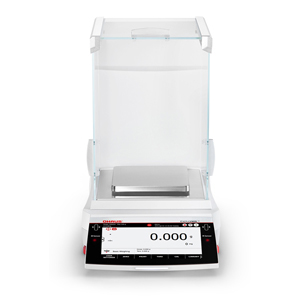

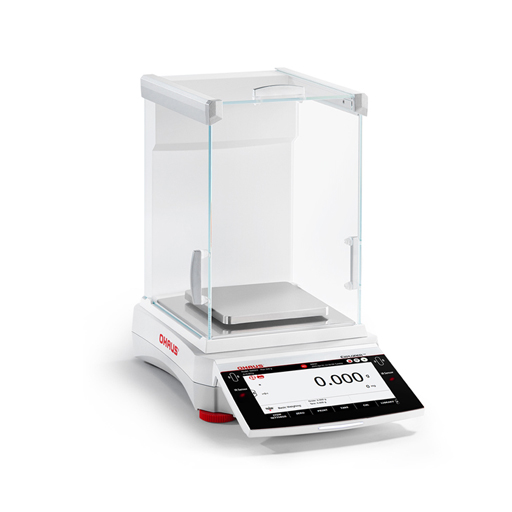

Metal housing, SST 316 weighing pan, Anti-static glass draftshield, 2 touchless sensors, Terminal status light
Design Features
Time Synchronization NTP, Support for HID (Human Interface Device) connection to a computer without the need for drivers, 4 level user management and an internal system log capacity of 100,000 entries, 1000 application sample libraries
