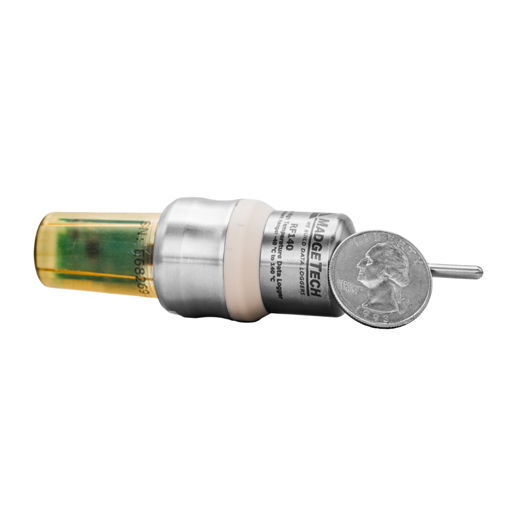

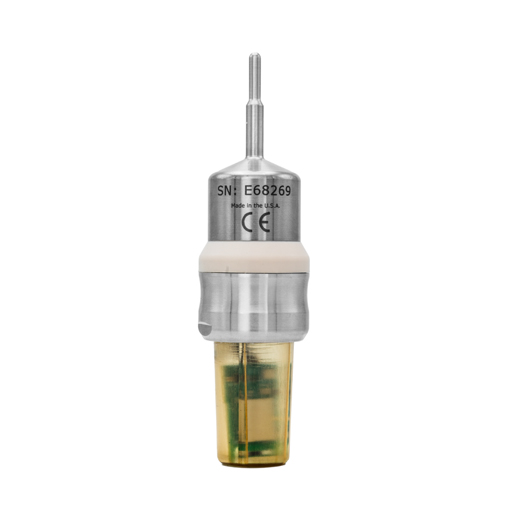

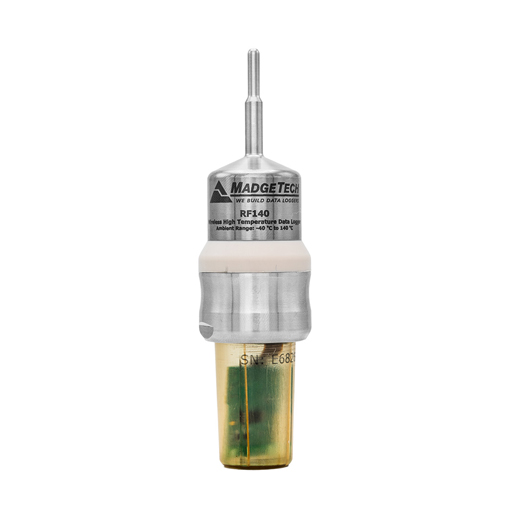

RF140 - Wireless High Temperature Data Logger
The RF140 is a wireless, real-time high-temperature data logger that combines the trusted performance of the HiTemp140 Series with the convenience of remote monitoring. Designed for demanding environments where temperature accuracy is critical, the RF140 records precise, time- and date-stamped data while communicating via Bluetooth® with the MadgeTech 4 Data Logger Software and the MadgeTech App, providing immediate visibility into critical processes.
The RF140 is engineered to withstand harsh environments commonly found in pharmaceutical manufacturing, healthcare, food processing, and industrial applications. By delivering data in real time, users can monitor conditions as they occur, receive instant notifications of alarm conditions, and respond quickly to process deviations without waiting for a study to be completed.
The RF140 operates within a standard temperature range of -40 °C to +140 °C (-40 °F to +284 °F) and is available in various probe lengths to accommodate a wide range of applications.
In addition to storing more than 60,000 time- and date-stamped readings, the RF140 continuously transmits data via Bluetooth® to the MadgeTech 4 Data Logger Software and the MadgeTech App, enabling live monitoring, customizable alarms, and immediate access to critical information. The logger’s onboard memory ensures every reading is captured, while automatic Bluetooth reconnection seamlessly synchronizes any data recorded during temporary communication interruptions. This combination of real-time monitoring, automatic synchronization, and secure onboard storage ensures a complete and uninterrupted record of your monitoring session.
Features
- Bluetooth® Wireless Communication
- Real-Time Monitoring
- Available in Various Probe Lengths
- Measures Temperatures from -40 °C to +140 °C

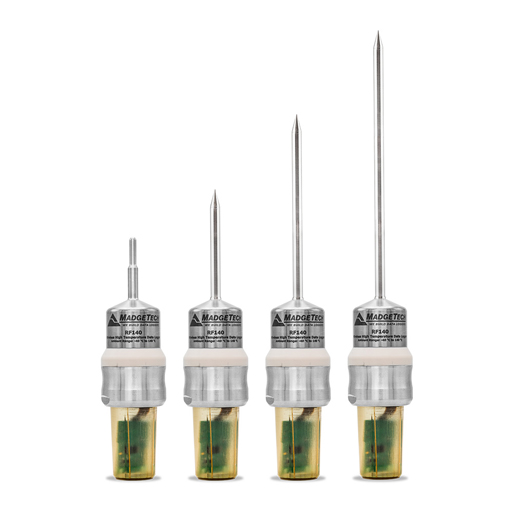

| Item No. | Description |
| RF140-1 | Wireless High Temperature Data Logger with 1” Probe |
| RF140-2 | Wireless High Temperature Data Logger with 2” Probe |
| RF140-5.25 | Wireless High Temperature Data Logger with 5.25” Probe |
| RF140-7 | Wireless High Temperature Data Logger with 7” Probe |
| Start Modes | Software programmable immediate start Delay start up to 18 months in advance |
| Stop Modes | Manual or Timed (specific date and time) |
| Real Time Recording | May be used with PC or mobile device to monitor and record data in real time |
| Password Protection | An optional password may be programmed into the device to restrict access to configuration options. Data may be read out without the password. |
| Memory | 65,586 |
| Trigger Settings | High and Low limits may be set. Once data meets or exceed sets limits, the device will record to memory. Bi-level start and stop triggers can also be programmed. Users can specify the number of readings to take after the device triggers. |
| Readings in Trigger Settings Mode | 13,107 |
| Wrap Around | Yes |
| Reading Rate | 1 reading every second up to 1 reading every 24 hours |
| Calibration | Digital calibration through software |
| Calibration Date | Automatically recorded within device |
| Battery Type | 3.6V high-temperature user replaceable power cell |
| Battery Life | 1 year typical (1 minute reading rate) |
| Data Format | Date and time stamped °C, K, °F or °R |
| Time Accuracy | ± 4.1 minute/month at 25 C |
| Computer Interface | BLE 2.4 GHz IEEE Std. 802.11 |
| Transmission Distance | 100 m max. outdoors - line of sight unobstructed 30 m max. indoors - typical urban environment |
| Operating System Compatibility | Windows XP SP3 or later |
| Software Compatibility | Standard Software version TBD Secure Software version TBD MadgeTech App |
| Operating Environment | -40 °C to +140 °C (-40 °F to +284 °F) 0 %RH to 100 %RH, 0.002 PSIA to 100 PSIA |
| IP Rating | IP68 |
| Dimensions (Body) | RF140-1:
3.29 in x 0.970 in dia. (83.57 mm x 24.6 mm dia.) RF140-2, 5.25, 7: 3.57 in x 0.970 in dia. (90.68 mm x 24.6 mm dia.) |
| Dimensions (Probe) | RF140-1: 1.1 in x 0.125 in dia. (27 mm x 3.2 mm dia.) RF140-2: 2.0 in x 0.188 in dia. (51 mm x 4.8 mm) RF140-5.25: 5.25 in x 0.188 in dia. (133 mm x 4.8 mm dia.) RF140-7: 7.0 in x 0.188 in dia. (178 mm x 4.8 mm dia.) |
| Weight | 4.2 oz (120 g) |
| Material | 316 Stainless Steel, PPSU |
| Approvals | CE, FCC |
TEMPERATURE
| Temperature Sensor | 100 Ω Platinum RTD |
| Operating Range | -40 °C to +140 °C (-40 °F to +284 °F) |
| Temperature Resolution | 0.01 °C (0.02 °F) |
| Calibrated Accuracy | ±0.1 °C/±0.18 °F (20 °C to +140 °C/68 °F to +284 °F) ±0.3 °C/±0.54 °F (0 °C to +19.99 °C/-4 °F to +67.98 °F) ±0.4 °C/±0.72 ºF (-40 °C to -20.01 °C/-40 °F to +-4.02 °F) |
