Defender Low Profile Bench ScaleDefender Low Profile Bench ScaleDefender Low Profile Bench ScaleDefender Low Profile Bench Scale

Defender Low Profile Bench Scale

  • Ohaus - Defender 3000 series
  • 100 hours rechargeable battery
  • Default resolution 1:6,000 to 1:7,500; NTEP certified and Measurement Canada approved to 3,000e
  • 304 stainless steel pan with painted carbon steel frame and aluminum IP67 load cell

Can we help you?

D31P15BR5

Model : D31P15BR5

  • Maximum Capacity: 33 lb (15 kg)
  • Readability: 0.005 lb (2 g)
  • Readability(Certified): 0.01 lb (5 g)

D31P30BR5

Model : D31P30BR5

  • Maximum Capacity: 66 lb (30 kg)
  • Readability: 0.01 lb (5 g)
  • Readability(Certified): 0.02 lb (10 g)

D31P60BR5

Model : D31P60BR5

  • Maximum Capacity: 132 lb (60 kg)
  • Readability: 0.02 lb (10 g)
  • Readability(Certified): 0.05 lb (20 g)

D31P60BL5

Model : D31P60BL5

  • Maximum Capacity: 132 lb (60 kg)
  • Readability: 0.02 lb (10 g)
  • Readability(Certified): 0.05 lb (20 g)

D31P150BL5

Model : D31P150BL5

  • Maximum Capacity: 330 lb (150 kg)
  • Readability: 0.05 lb (20 g)
  • Readability(Certified): 0.1 lb (50 g)



The OHAUS Defender 3000 Series bench scales are ideal for general weighing and simple counting applications in production, packaging, warehouse, inventory, and shipping and receiving areas.


Featuring a simple yet rugged tubular-frame base design, indicators with tactile keys, backlit LCD display, built-in rechargeable battery operation, and flexible mounting capabilities, these scales are ready to take your operation to the next level.

Standard Features:

• Four Capacities: 33 lb/15 kg, 66 lb/30 kg, 132 lb/60 kg, and 330 lb/150 kg (depending on calibration unit used).

• Default resolution 1:6,000 to 1:7,500; NTEP certified and Measurement Canada approved to 3,000e.

• 304 stainless steel pan with painted carbon steel frame and aluminum IP67 load cell

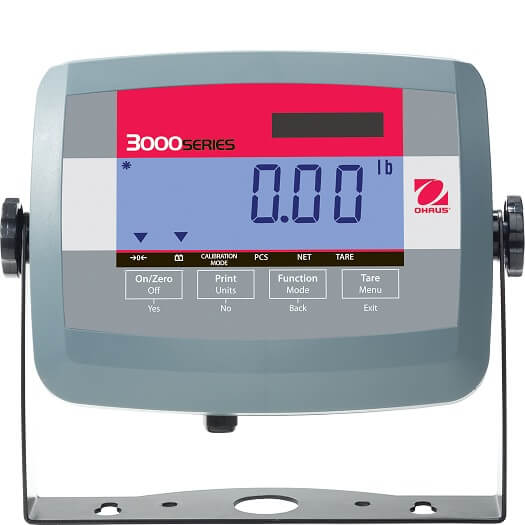

• Indicator features a high-impact durable ABS plastic housing with painted steel mounting to the front of scale base for applications requiring a low-profile. Mounting has a handle built-in for easy transportation.

• Adjustable non-slip rubber leveling feet with externally visible level indicator

• Multiple weighing units: lb, oz, lb: oz, kg, g (depending on model)

• Parts counting mode with selectable sample sizes, last sample size, and Average Piece Weight data

• 1-in/25mm high LCD weight display with high-contrast backlight

• Built-in RS232 for printing and data connection

• AC adapter and internal rechargeable lead acid battery included


Features:

Indicator housing with internal rib reinforcements, reversible front/rear cover, built-in RS232C with manual continuous/interval printing, hardware configuration lockout switch, internal lead-acid rechargeable battery, and AC adapter. Software included parts counting mode with selectable sample sizes, selectable span calibration points, averaging level, auto-zero tracking, battery saving auto-off, Geo Code geographical gravity calibration adjustment, and software menu lockouts.
















Durable ABS plastic terminal houses a 100-hour rechargeable battery which allows for continuous operation for five straight days

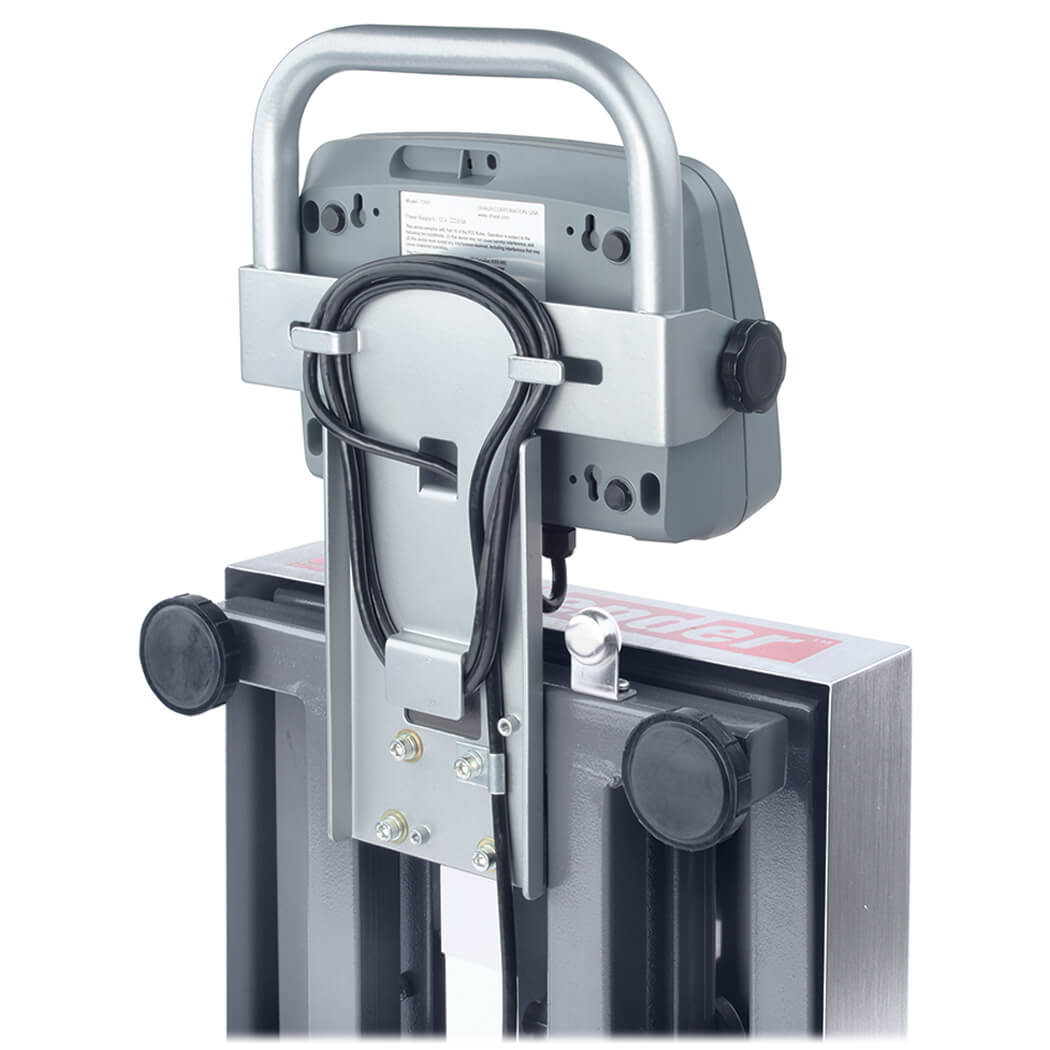

 This tough industrial-scale features a 304 stainless steel platform, painted steel tubular frame, aluminum load cell, and painted steel base mount bracket. Includes a handle for easy scale mobility.



 Easy-to-read display & basic counting mode allow for simple operation for everyday basic industrial applications. Offered with NTEP/Measurement Canada or OIML/EC Typeapprovals (depending on region).


Applications
Weighing, Parts Counting
Display
Backlit Liquid Crystal Display (LCD)
Operation
AC adapter (included) or rechargeable battery (included)
Communication
Easy access communication port with RS232 interface (included)
Construction
ABS indicator with reversible rear cover, painted steel base mount bracket with handle, 304-grade stainless steel platform with painted steel tubular frame, IP67 aluminum load cell, self-adjusting stainless steel feet with removable rubber caps
Design Features
125% overload protection, selectable span calibration points, averaging level, auto-zero tracking, battery saving auto-off, Geo Code geographical gravity calibration adjustment, and software menu lockouts

Models

D31P15BR5

D31P30BR5

D31P60BR5

D31P60BL5

D31P150BL5



Capacity

× Readability (d)

33 lb × 0.005 lb

528 oz × 0.05 oz

15 kg × 0.002 kg

15,000 g × 2 g

66 lb × 0.01 lb

1056 oz × 0.2 oz

66 lb × 0.2 oz

30 kg × 0.005 kg

30,000 g × 5 g

132 lb × 0.02 lb

2,112 oz × 0.5 oz

60 kg × 0.01 kg

60,000 g × 10 g

132 lb × 0.02 lb

2,112 oz × 0.5 oz

60 kg × 0.01 kg

60,000 g × 10 g

330 lb × 0.05 lb

5,280 oz × 0.5 oz

150 kg × 0.02 kg

150,000 g × 20 g



Capacity

× Readability (d) (Cal unit lb)

30 lb × 0.005 lb

480 oz × 0.1 oz

30 lb × 0.1 oz

13.6 kg × 0.002 kg 13,600 g × 2 g

60 lb × 0.01 lb

960 oz × 0.2 oz

60 lb × 0.2 oz

27 kg × 0.005 kg

27,000 g × 5 g

150 lb × 0.02 lb

2,400 oz × 0.2 oz

68 kg × 0.01 kg

68,000 g × 10 g

150 lb × 0.02 lb

2,400 oz × 0.2 oz

68 kg × 0.01 kg

68,000 g × 10 g

300 lb × 0.05 lb

4,800 oz × 1 oz

300 lb × 1 oz

136 kg × 0.02 kg

136,000 g × 20 g

Displayed Resolution

1:7,500

1:6,000

1:7,500

1:7,500

1:7,500

Capacity × Readability approved (e) (Cal unit lb)

30 lb × 0.01 lb

60 lb × 0.02 lb

150 lb × 0.05 lb

150 lb × 0.05 lb

300 lb × 0.1 lb

480 oz × 0.2 oz

960 oz × 0.5 oz

2,400 oz × 1 oz

2,400 oz × 1 oz

4,800 oz × 2 oz

Approved Resolution

1:3,000

Platform (W × D × min H)

12 × 14 × 4.8 in / 305 × 355 × 123 mm

16.5 × 21.6 × 5.4 in / 420 × 550 × 136 mm

Front View Dimensions

(F1 × F2 × F3 × F4 × F5 × F6)

8.3 x 6.5 x 12 x 4.8 x 2.9 x 10.1 in

210 × 166 × 305 × 123 × 75 × 256 mm

8.3 x 6.5 x 16.5 x 5.4 x 3.2 x 14.6 in

210 × 166 × 420 × 136 × 80 × 371 mm

Side View Dimensions (S1 × S2 × S3 × S4 × S5)

5.1 x 23.8 x 13.8 x 12 x 2 in

130 × 605 × 355 × 306 × 52 mm

5.1 x 31.5 x 21.7 x 19.7 x 2 in

130 × 800 × 550 × 500 × 52 mm

Safe Overload Capacity

125% of rated capacity

Functions

Weighing, Parts Counting

Weight Display

6-digit, 7-segment backlit LCD, 1 inch / 25 mm high digits

Keyboard

4 function mechanical keys, raised, tactile

Stabilization Time

Within 2 seconds

Auto-zero Tracking

Off, 0.5, 1 or 3 divisions

Key Zeroing Range

2% or 100% of capacity

Span Calibration

5 lb/kg to 100% of capacity, user selectable

Power

AC adapter with 100-hour internal rechargeable lead acid battery included

Interface

Bi-directional RS232C

Operating Temperature

14°F to 104°F / -10°C to 40°C, Maximum relative humidity 80 % for temperatures up to 88°F / 31°C

Range

Decreasing linearly to 50 % relative humidity at 104°F / 40°C, non condensing

Net Weight

25 lb / 11.5 kg

43 lb / 19.5 kg

Shipping Weight

33 lb / 15 kg

51 lb / 23 kg

Shipping Dimensions

25.3 × 19.6 × 8.5 in / 642 × 497 × 212 mm

33.7 × 22.2 × 8.9 in / 857 × 564 × 225 mm
