Ultrasonic Flow Sensor For Liquid Cooling Systems

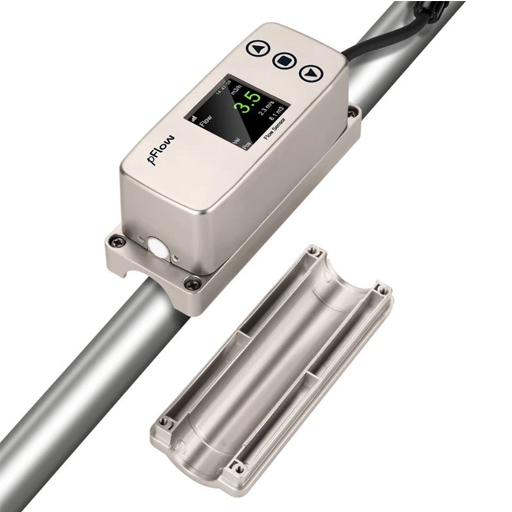

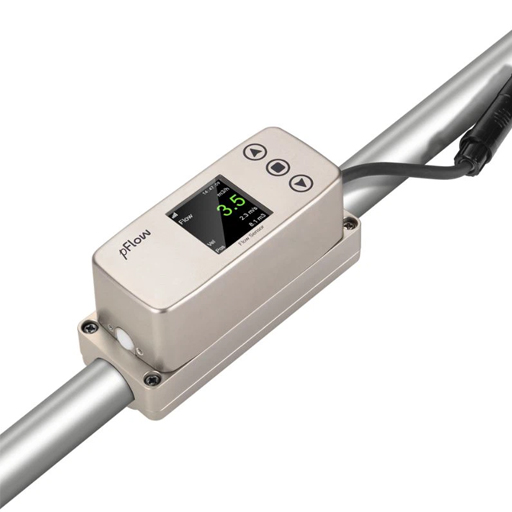

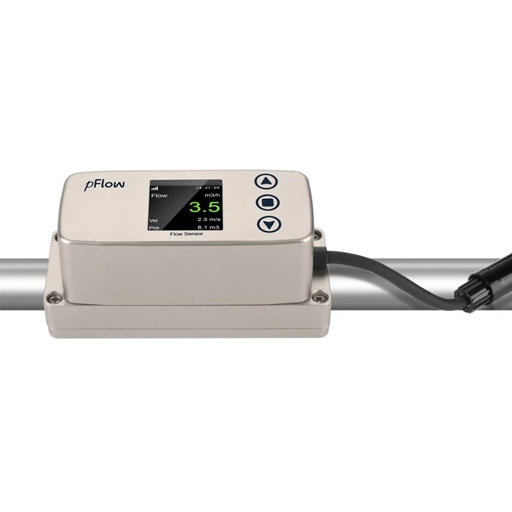

GF-S-CL ultrasonic flow sensor adopts the measurement principle of transit-time method, relies on high- reliability signal processing circuits, and accurately measures flow rate through complex algorithms such as sampling, calculation, and correction. The product is designed with an integrated external clamping structure for quick and easy installation and operates without direct contact with the fluid medium, effectively avoiding interference with existing production processes. Accurate flow measurement can be realized in just a few simple steps. For small pipe diameter flow measurement needs, GF-S-CL clamp-on ultrasonic flow sensor is undoubtedly the best choice.
Features
- Easy installation, No breaking pipeline
- No need to adjust, Clip on to measure
- LCD color display screen
- 360° rotatable display screen

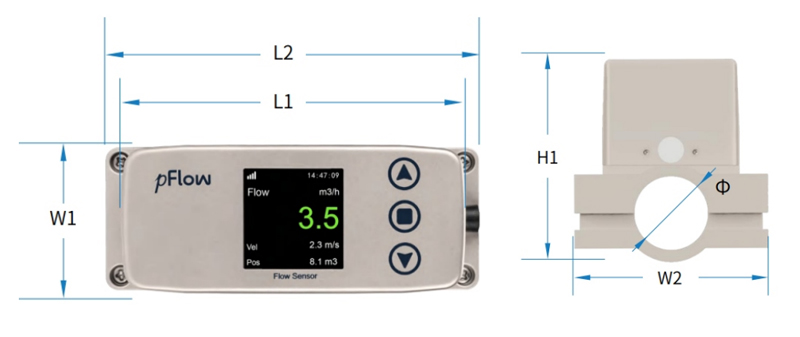

Pipe Size Comparison Table (Unit: mm)
| Item No. | Nominal Inner Diameter of Pipe | W1 | W2 | L1 | L2 | H1 | φ |
| GEGFCLDN15 | DN15 | 42 | 42 | 96 | 110 | 63 | 22.5 |
| GEGFCLDN20 | DN20 | 42 | 59.5 | 96 | 110 | 69.5 | 29 |
| GEGFCLDN25 | DN25 | 42 | 59.5 | 96 | 110 | 76 | 35.5 |
| GEGFCLDN32 | DN32 | 42 | 64.5 | 96 | 110 | 83 | 42.5 |
| GEGFCLDN40 | DN40 | 42 | 76.5 | 96 | 110 | 95 | 54.5 |
| GEGFCLDN50 | DN50 | 42 | 85.5 | 96 | 110 | 104 | 63.5 |
Applications
- Liquid Cooling Systems
- Agriculture and irrigation systems
- Water and wastewater management
- HVAC (Heating, Ventilation, and Air Conditioning) systems
- Process industries (chemical, pharmaceutical, food and beverage)
- Energy management and environmental monitoring
- Research and development
- Facilities management
- Industrial maintenance and troubleshooting
Performance Index
| Flow Velocity | 0.3m/s ~5.0m/s |
| Accuracy | ±3% of FS |
| Pipe Size | DN15、DN20、DN25、DN32、DN40、DN50 |
| Medium | Water |
| Pipe Material | Stainless Steel, PVC, Copper, PPR |
Functional Index
| Communication Interface | RS485, Support MODBUS Protocol |
| Output | 4~20mA |
| Power Supply | 10～36VDC/500mA |
| Keyboard | 3 touch keys |
| Display Screen | 1.54"LCD color screen, resolution 240*240 |
| Temperature | Transmitter: 14℉ to 122℉ ( -10℃ ~ 50℃ ) Transducer: 32℉ to 140℉ ( 0℃ ~ 60℃ ) |
| Humidity | Relative humidity 0~99%, No condensation |
| IP | IP54 |
Physical Characteristics
| Casing Material | PC engineering plastic |
| Clamp Material | PC engineering plastic |
| Transmitter | All-in-one |
| Transducer | Clamp on |
| Cable | φ5 black six-core shielded cable with self-locking connectors, standard length: 4m |
